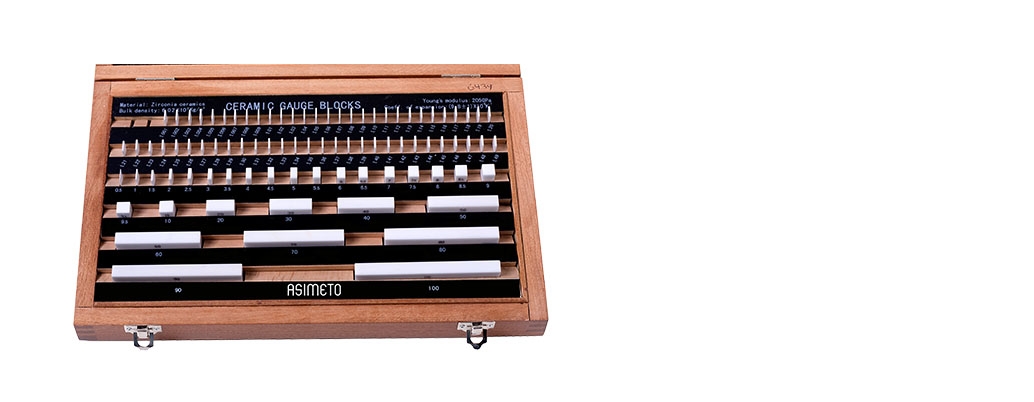

Rectangular Gauge Block (Ceramic)

Series 650 / 657 / 658
Rectangular Gauge Block (Ceramic)
  • Rectangular Gauge Block (Ceramic)

FEATURES

  • Individual serial numbers on each block, regardless of grade.
  • A complete certificate of calibration traceable to the NIST or DIN showing the deviation of each block.
Inquiry

PRODUCT SPECIFICATIONS

INCH METRIC
Blocks per SetBlocks Included in SetGradeCode No.
122pcs 1 Block: 1.005mm
9 Blocks: 1.001 - 1.009mm x 0.001mm step
49 Blocks: 1.01 - 1.49mm x 0.01mm step
4 Blocks: 1.6 - 1.9mm x 0.1mm step
49 Blocks: 0.5 - 24.5mm x 0.5mm step
8 Blocks: 30 - 100mm x 10mm step
2 Blocks: 25mm, 75mm		 0 650-61-0
122pcs 1 Block: 1.005mm
9 Blocks: 1.001 - 1.009mm x 0.001mm step
49 Blocks: 1.01 - 1.49mm x 0.01mm step
4 Blocks: 1.6 - 1.9mm x 0.1mm step
49 Blocks: 0.5 - 24.5mm x 0.5mm step
8 Blocks: 30 - 100mm x 10mm step
2 Blocks: 25mm, 75mm		 1 650-61-1
103pcs 1 Block: 1.005mm
49 Blocks: 1.01 - 1.49mm x 0.01mm step
49 Blocks: 0.5 - 24.5mm x 0.5mm step
4 Blocks: 25 - 100mm x 25mm step		 0 650-62-0
103pcs 1 Block: 1.005mm
49 Blocks: 1.01 - 1.49mm x 0.01mm step
49 Blocks: 0.5 - 24.5mm x 0.5mm step
4 Blocks: 25 - 100mm x 25mm step		 1 650-62-1
87pcs 9 Blocks: 1.001 - 1.009mm x 0.001mm step
49 Blocks: 1.01 - 1.49mm x 0.01mm step
19 Blocks: 0.5 - 9.5mm x 0.5mm step
10 Blocks: 10 - 100mm x 10mm step		 0 650-63-0
87pcs 9 Blocks: 1.001 - 1.009mm x 0.001mm step
49 Blocks: 1.01 - 1.49mm x 0.01mm step
19 Blocks: 0.5 - 9.5mm x 0.5mm step
10 Blocks: 10 - 100mm x 10mm step		 1 650-63-1
47pcs 1 Block: 1.005mm
20 Blocks: 1.01 - 1.20mm x 0.01mm step
7 Blocks: 1.3 - 1.9mm x 0.1mm step
9 Blocks: 1 - 9mm x 1mm step
10 Blocks: 10 - 100mm x 10mm step		 0 650-64-0
47pcs 1 Block: 1.005mm
20 Blocks: 1.01 - 1.20mm x 0.01mm step
7 Blocks: 1.3 - 1.9mm x 0.1mm step
9 Blocks: 1 - 9mm x 1mm step
10 Blocks: 10 - 100mm x 10mm step		 1 650-64-1
32pcs 1 Block: 1.005mm
9 Blocks: 1.001 - 1.009mm x 0.001mm step
9 Blocks: 1.1 - 1.9mm x 0.1mm step
9 Blocks: 1 - 9mm x 1mm step
4 Blocks: 10mm, 20mm, 30mm, 50mm		 0 650-66-0
32pcs 1 Block: 1.005mm
9 Blocks: 1.001 - 1.009mm x 0.001mm step
9 Blocks: 1.1 - 1.9mm x 0.1mm step
9 Blocks: 1 - 9mm x 1mm step
4 Blocks: 10mm, 20mm, 30mm, 50mm		 1 650-66-1
112pcs 1 Block: 1.005mm
9 Blocks: 1.001 - 1.009mm x 0.001mm step
49 Blocks: 1.01 - 1.49mm x 0.01mm step
49 Blocks: 0.5 - 24.5mm x 0.5mm step
4 Blocks: 25 - 100mm x 25mm step		 0 650-67-0
112pcs 1 Block: 1.005mm
9 Blocks: 1.001 - 1.009mm x 0.001mm step
49 Blocks: 1.01 - 1.49mm x 0.01mm step
49 Blocks: 0.5 - 24.5mm x 0.5mm step
4 Blocks: 25 - 100mm x 25mm step		 1 650-67-1
SizeGradeCode No.
0.5mm 0 657-01-0
1mm 0 657-02-0
1.001mm 0 657-03-0
1.002mm 0 657-04-0
1.003mm 0 657-05-0
1.004mm 0 657-06-0
1.005mm 0 657-07-0
1.006mm 0 657-08-0
1.007mm 0 657-09-0
1.008mm 0 653-10-0
1.009mm 0 657-11-0
1.01mm 0 657-12-0
1.02mm 0 657-13-0
1.03mm 0 657-14-0
1.04mm 0 657-15-0
1.05mm 0 657-16-0
1.06mm 0 657-17-0
1.07mm 0 657-18-0
1.08mm 0 657-19-0
1.09mm 0 657-20-0
1.1mm 0 653-27-0
1.11mm 0 657-22-0
1.12mm 0 657-23-0
1.13mm 0 657-24-0
1.14mm 0 657-25-0
1.15mm 0 657-26-0
1.16mm 0 657-27-0
1.17mm 0 657-28-0
1.18mm 0 657-29-0
1.19mm 0 657-30-0
1.2mm 0 657-31-0
1.21mm 0 657-32-0
1.22mm 0 657-33-0
1.23mm 0 657-34-0
1.24mm 0 657-35-0
1.25mm 0 657-36-0
1.26mm 0 657-37-0
1.27mm 0 657-38-0
1.28mm 0 657-39-0
1.29mm 0 657-40-0
1.3mm 0 657-41-0
1.31mm 0 657-42-0
1.32mm 0 657-43-0
1.33mm 0 657-44-0
1.34mm 0 657-45-0
1.35mm 0 657-46-0
1.36mm 0 657-47-0
1.37mm 0 657-48-0
1.38mm 0 657-49-0
1.39mm 0 657-50-0
1.4mm 0 657-51-0
1.41mm 0 657-52-0
1.42mm 0 657-53-0
1.43mm 0 657-54-0
1.44mm 0 657-55-0
1.45mm 0 657-56-0
1.46mm 0 657-57-0
1.47mm 0 657-58-0
1.48mm 0 657-59-0
1.49mm 0 657-60-0
1.5mm 0 657-61-0
1.6mm 0 657-62-0
1.7mm 0 657-63-0
1.8mm 0 657-64-0
1.9mm 0 657-65-0
2mm 0 657-66-0
2.5mm 0 657-67-0
3mm 0 657-68-0
3.5mm 0 657-69-0
4mm 0 657-70-0
4.5mm 0 657-71-0
5mm 0 657-72-0
5.5mm 0 657-73-0
6mm 0 657-74-0
6.5mm 0 657-75-0
7mm 0 657-76-0
7.5mm 0 657-77-0
8mm 0 657-78-0
8.5mm 0 657-79-0
9mm 0 657-80-0
9.5mm 0 657-81-0
10mm 0 657-82-0
10.5mm 0 657-83-0
11mm 0 657-84-0
11.5mm 0 657-85-0
12.5mm 0 657-86-0
12.5mm 0 657-87-0
13mm 0 657-88-0
13.5mm 0 657-89-0
14mm 0 657-90-0
14.5mm 0 657-91-0
15mm 0 657-92-0
15.5mm 0 657-93-0
16mm 0 657-94-0
16.5mm 0 657-95-0
17mm 0 657-96-0
17.5mm 0 657-97-0
18mm 0 657-98-0
18.5mm 0 657-99-0
19mm 0 658-00-0
19.5mm 0 658-01-0
20mm 0 658-02-0
20.5mm 0 658-03-0
21mm 0 658-04-0
21.5mm 0 658-05-0
22mm 0 658-06-0
22.5mm 0 658-07-0
23mm 0 658-08-0
23.5mm 0 658-09-0
24mm 0 658-10-0
24.5mm 0 658-11-0
25mm 0 658-12-0
30mm 0 658-13-0
40mm 0 658-14-0
50mm 0 658-15-0
60mm 0 658-16-0
70mm 0 658-17-0
75mm 0 658-18-0
80mm 0 658-19-0
90mm 0 658-20-0
100mm 0 658-21-0
