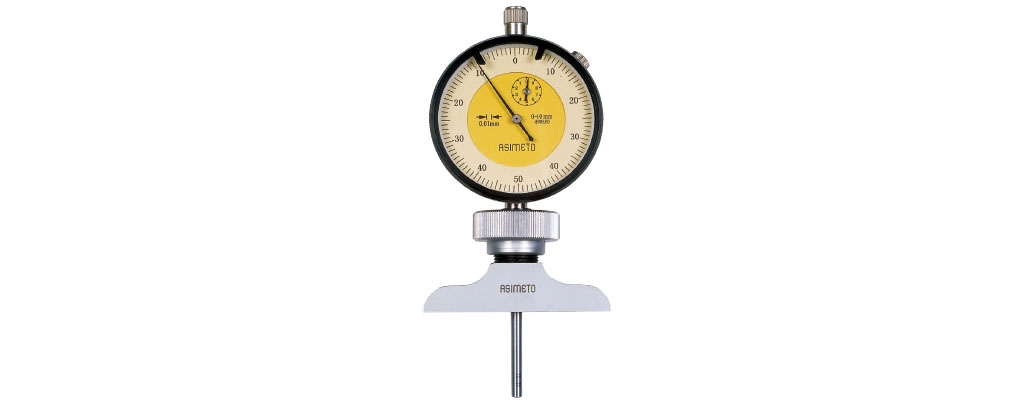

Series 473

FEATURES

  • Graduation: .001" / 0.01mm
  • The total measuring range is accomplished with threaded depth rods in 1" or 10mm intervals.

PRODUCT SPECIFICATIONS

RangeResolutionAccuracyStrokeRodsBase LengthCode No.
0-0.4" .001" ± .002" 1" 4 pcs 2.5" x .63" 473-04-1
0-0.4" .001" ± .002" 1" 4 pcs 4" x .63" 473-04-3
RangeResolutionAccuracyStrokeRodsBase LengthCode No.
0-100mm 0.01mm ± 0.02mm 10mm 10 pcs 63 x 17mm 473-04-0
0-100mm  0.01mm ± 0.02mm 10mm 10 pcs 101.5 x 17mm 473-04-2
