Dial Test Indicators

Series 501 / 502 / 511 / 512
Dial Test Indicators
  • Dial Test Indicators

FEATURES

  • Graduation:
    Inch: .0001" / .0005"
    Metric: 0.002mm / 0.01mm
  • Jeweled bearings
  • Ø8mm stem diameter for metric models
  • Ø3/8" stem diameter for inch models
  • Easy to read yellow face

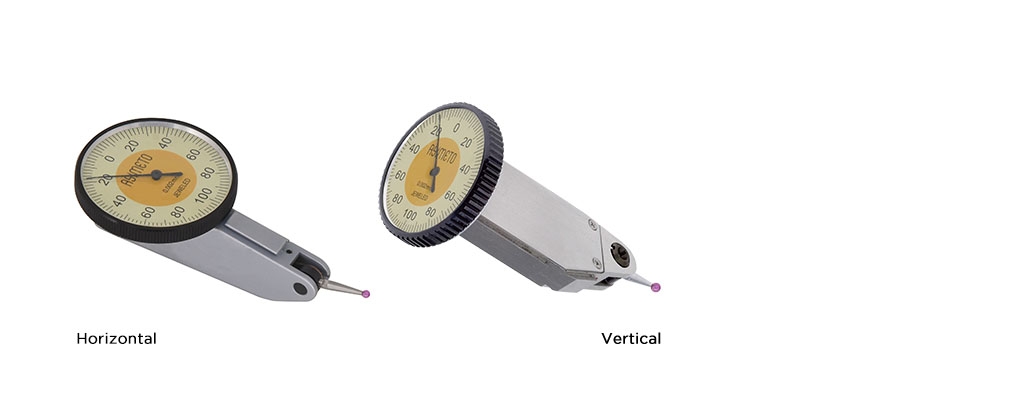

  • Horizontal models and vertical models are available.
  • Ruby contact point
  • 501-02-1 is with copper body
Inquiry

PRODUCT SPECIFICATIONS

INCH METRIC
RangeResolutionDial ReadingAccuracyLNotesCode No.
.008" .0001" 0-4-0 ± .0001" 12.8mm Horizontal 501-78-3
.03" .0005" 0-15-0 ± .0005" 13.5mm Horizontal 501-73-3
.008" .0001" 0-4-0 ± .0001" 12.8mm Vertical 501-78-5
.03" .0005" 0-15-0 ± .0005" 13.5mm Vertical 501-73-5
.03" .0005" 0-15-0 ± .0005" 24mm Horizontal 501-73-6
RangeResolutionDial ReadingAccuracyLNotesCode No.
0.2mm 0.002mm 0-100-0 0.004mm 12.2mm Horizontal
(Aluminium Body)		 501-02-1
0.2mm 0.002mm 0-100-0 0.004mm 12.8mm Horizontal 501-02-2
0.5mm 0.01mm 0-25-0 0.013mm 14.4mm Horizontal 501-05-2
0.8mm 0.01mm 0-40-0 0.013mm 14.4mm Horizontal 501-08-2
0.8mm 0.01mm 0-40-0 0.013mm 25.4mm Horizontal 501-08-8
1.0mm 0.01mm 0-50-0 0.013mm 18.8mm Horizontal 501-10-2
1.0mm 0.01mm 0-50-0 0.013mm 32.6mm Horizontal 501-10-8
0.2mm 0.002mm 0-100-0 0.004mm 12.8mm Vertical 501-02-4
0.5mm 0.01mm 0-25-0 0.013mm 14.4mm Vertical 501-05-4
0.8mm 0.01mm 0-40-0 0.013mm 14.4mm Vertical 501-08-4
1.0mm 0.01mm 0-50-0 0.013mm 18.8mm Vertical 501-10-4
0.2mm 0.002mm 0-100-0 0.004mm 11.8mm Horizontal
(G Series)		 501-02-6
0.8mm 0.01mm 0-40-0 0.008mm 11.8mm Horizontal
(G Series)		 501-08-6
0.2mm 0.002mm 0-100-0 0.004mm 11.8mm Horizontal
(IP53 Model)		 511-02-6
0.8mm 0.01mm 0-40-0 0.013mm 11.8mm Horizontal
(IP53 Model)		 511-08-6
RangeResolutionDial ReadingAccuracyLNotesCode No.
.008" .0001" 0-4-0 ± .0001" 12.8mm Horizontal 501-78-7
.03" .0005" 0-15-0 ± .0005" 13.5mm Horizontal 501-73-8
RangeResolutionDial ReadingAccuracyLNotesCode No.
0.2mm 0.002mm 0-100-0 0.004mm 12.8mm Horizontal 501-02-7
0.5mm 0.01mm 0-25-0 0.013mm 14.4mm Horizontal 501-05-7
0.8mm 0.01mm 0-40-0 0.013mm 14.4mm Horizontal 501-08-7
1.0mm 0.01mm 0-50-0 0.013mm 18.8mm Horizontal 501-10-7
RangeResolutionDial ReadingAccuracyLNotesCode No.
0.2mm 0.002mm 0-100-0 0.004mm 12.8mm Horizontal 502-02-2
0.5mm 0.01mm 0-25-0 0.013mm 14.4mm Horizontal 502-05-2
0.8mm 0.01mm 0-40-0 0.013mm 14.4mm Horizontal 502-08-2
1.0mm 0.01mm 0-50-0 0.013mm 18.8mm Horizontal 502-10-2
0.2mm 0.002mm 0-100-0 0.004mm 12.8mm Vertical 502-02-4
0.5mm 0.01mm 0-25-0 0.013mm 14.4mm Vertical 502-05-4
0.8mm 0.01mm 0-40-0 0.013mm 14.4mm Vertical 502-08-4
1.0mm 0.01mm 0-50-0 0.013mm 18.8mm Vertical 502-10-4
0.2mm 0.002mm 0-100-0 0.004mm 11.8mm Horizontal 502-02-6
0.8mm 0.01mm 0-40-0 0.008mm 11.8mm Horizontal 502-08-6
0.2mm 0.002mm 0-100-0 0.004mm 11.8mm Horizontal
(G Series)		 502-02-6
0.8mm 0.01mm 0-40-0 0.008mm 11.8mm Horizontal
(G Series)		 502-08-6
0.2mm 0.002mm 0-100-0 0.004mm 11.8mm Horizontal
(IP53 Model)		 512-02-6
0.8mm 0.01mm 0-40-0 0.013mm 11.8mm Horizontal
(IP53 Model)		 512-08-6
RangeResolutionDial ReadingAccuracyLNotesSet Code No.
0.2mm 0.002mm 0-100-0 0.004mm 12.8mm Horizontal 502-02-7
0.5mm 0.01mm 0-25-0 0.013mm 14.4mm Horizontal 502-05-7
0.8mm 0.01mm 0-40-0 0.013mm 14.4mm Horizontal 502-08-7
0.8mm 0.01mm 0-40-0 0.013mm 25.4mm Horizontal 501-08-8
1.0mm 0.01mm 0-50-0 0.013mm 18.8mm Horizontal 502-10-7
