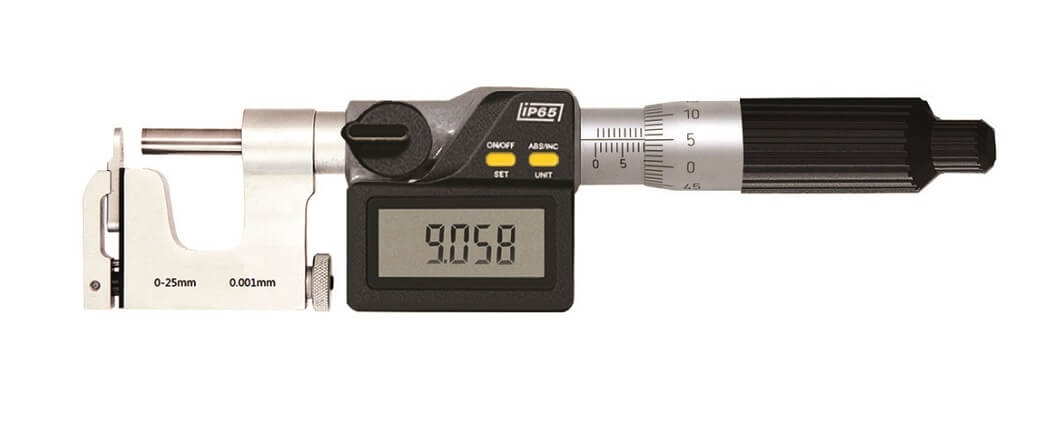

Series 125

FEATURES

  • Resolution:
    Digital reading: .00005" / 0.001mm
    Measures tube thickness, shoulder edge distance rivet head height, with interchangeable anvils (Flat anvil, Rod anvil, V-anvil)
  • Carbide tipped measuring faces
  • Inch/Metric conversion
  • Read the actual absolute measuring position upon switching on the display
  • Automatic On/Off to maximize battery life
  • Absolute or incremental measuring modes
  • Protection level IP65
  • Support Bluetooth data transmission
    Bluetooth data output: 901-01-5

PRODUCT SPECIFICATIONS

RangeAccuracyCode No.
0-1"/0-25mm ± .0001" 125-01-1
1-2"/25-50mm ± .0002" 125-02-1
RangeAccuracyCode No.
0-25mm/0-1" ± 0.002mm 125-01-0
25-50mm/1-2" ± 0.002mm 125-02-0
