Series 490

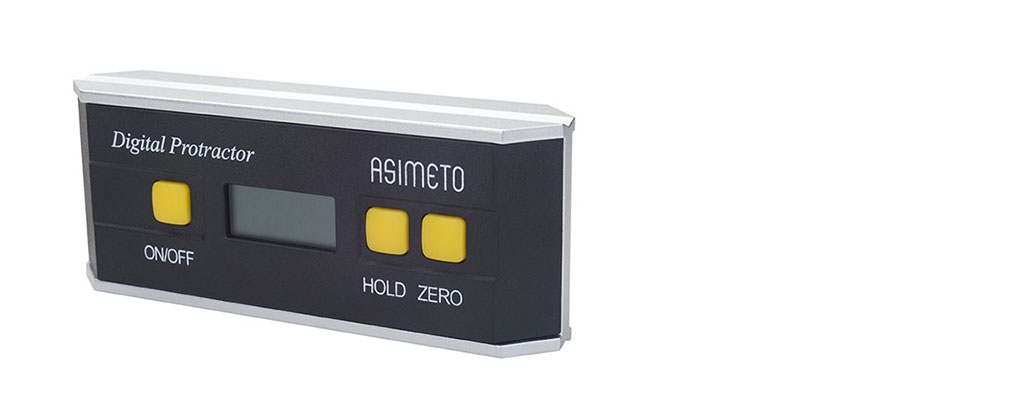

Digital Protractors (Level Type)
Series 490
FEATURES
This protractor provides an immediate digital reading of any angle in a full circle with 0°-90°-0°-90°-0° readings. The machined Aluminum frame is rigid and light with a precise platform that allows the sensor and its microprocessor circuit to provide high accuracy throughout the entire 360° range
Four 90° quadrants for display purposes
Calibrates in minutes without any special fixtures
Hold button for freezing a reading in an unreadable position
ABS/ZERO button allows 2 measuring modes, standard and alternate reference
V-grooves on top and bottom for use on curved surfaces
Automatic On/Off to maximize battery life
Angle displayed upright regardless of protractor position
Item #490-16-2 comes with magnet on base, which is helpful for fixing
Weight: 343g
Power: 3V, Lithium cell
Q'ty :
Inquiry
PRODUCT SPECIFICATIONS
INCH
METRIC
Others
Range
Resolution
Operating Temp.
Range
Accuracy
Size
Code No.
360°
0.1°
23°F - 122°F
-5°C - 50°C
±0.1°
152x63.8x60mm
490-16-0
360°
0.1°
23°F - 122°F
-5°C - 50°C
±0.1°
152x63.8x60mm
490-16-2
(with Magnet on base)
Range
Resolution
Operating Temp.
Range
Accuracy
Size
Code No.
360°
0.1°
23°F - 122°F
-5°C - 50°C
±0.1°
152x63.8x60mm
490-16-0
360°
0.1°
23°F - 122°F
-5°C - 50°C
±0.1°
152x63.8x60mm
490-16-2
(with Magnet on base)
