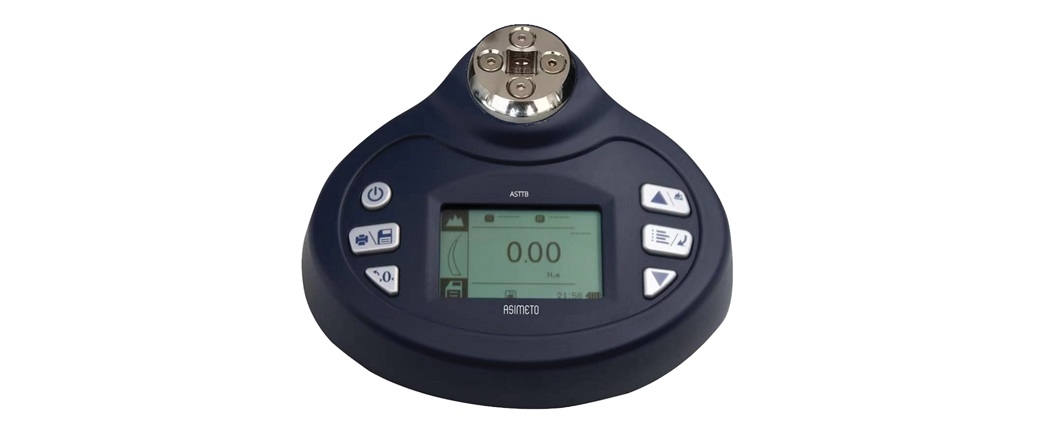

Digital Torque Indicators

Series 701
Digital Torque Indicators
  • Digital Torque Indicators

FEATURES

  • Units options: N-m, N-cm, kgf-cm, lbf-ft, lbf-in
  • Real time display measurement result.
  • Real time display 2-ways progress bar.
  • Graphic or Numerical display mode.
  • Automatic reversible display.
  • Upper and lower limit alarms and conclusion output.
  • USB or RS232 interface.
  • Real-time torque curve can be display if connected to the software.
  • Sampling frequency: 2000 Hz.
  • Accuracy: ±0.3%
Inquiry

PRODUCT SPECIFICATIONS

INCH METRIC
ModelRangeResolutionAdaptorCode No.　
ASTT B2 0.1 - 2 N.m 0.0002 N.m 1/4" or 1/2" 701-61-0
ASTT B5 0.25 - 5 N.m 0.0005 N.m 1/4" or 1/2" 701-61-1
ASTT B10 0.5 - 10 N.m 0.001 N.m 1/4" or 1/2" 701-61-2
ASTT B20 1 - 20 N.m 0.002 N.m 3/8" or 1/2" 701-61-3
ASTT B50 2.5 - 50 N.m 0.005 N.m 3/8" or 1/2" 701-61-4
ASTT B100 5 - 100 N.m 0.01 N.m 3/8" or 1/2" 701-61-5
ModelRangeResolutionAdaptorCode No.　
ASTT B2 0.1 - 2 N.m 0.0002 N.m 1/4" or 1/2" 701-61-0
ASTT B5 0.25 - 5 N.m 0.0005 N.m 1/4" or 1/2" 701-61-1
ASTT B10 0.5 - 10 N.m 0.001 N.m 1/4" or 1/2" 701-61-2
ASTT B20 1 - 20 N.m 0.002 N.m 3/8" or 1/2" 701-61-3
ASTT B50 2.5 - 50 N.m 0.005 N.m 3/8" or 1/2" 701-61-4
ASTT B100 5 - 100 N.m 0.01 N.m 3/8" or 1/2" 701-61-5
