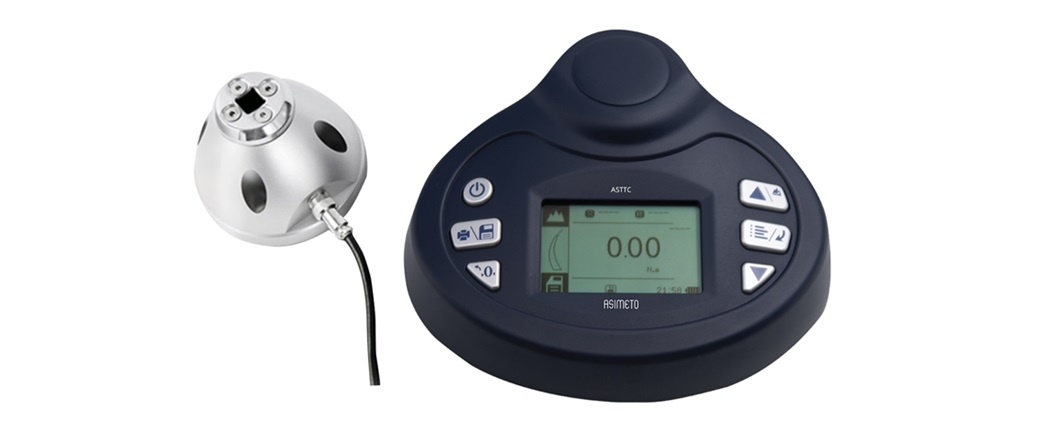

Digital Torque Indicators

Series 701
Digital Torque Indicators
  • Digital Torque Indicators

FEATURES

  • Units options: N-m, N-cm, kgf-cm, lbf-ft, lbf-in
  • Real time display measurement result.
  • Real time display 2-ways progress bar.
  • Graphic or Numerical display mode.
  • Upper and lower limit alarms and conclusion output.
  • USB or RS232 interface.
  • Real-time torque curve can be display if connected to the software.
  • Sampling frequency: 2000 Hz.
  • Accuracy: ±0.3%
Inquiry

PRODUCT SPECIFICATIONS

INCH METRIC
ModelRangeResolutionAdaptorCode No.　
ASTTC10 0.5 - 10 N.m 0.001 N.m 1/4" or 1/2" 701-63-0
ASTTC20 1 - 20 N.m 0.002 N.m 3/8" or 1/2" 701-63-1
ASTTC50 2.5 - 50 N.m 0.005 N.m 3/8" or 1/2" 701-63-2
ASTTC100 5 - 100 N.m 0.01 N.m 3/8" or 1/2" 701-63-3
ASTTC200 10 - 200 N.m 0.02 N.m 3/8" or 1/2" 701-63-4
ASTTC500 25 - 500 N.m 0.05 N.m 3/4" 701-63-5
ASTTC800 40 - 800 N.m 0.1 N.m 3/4" 701-63-6
ModelRangeResolutionAdaptorCode No.　
ASTTC10 0.5 - 10 N.m 0.001 N.m 1/4" or 1/2" 701-63-0
ASTTC20 1 - 20 N.m 0.002 N.m 3/8" or 1/2" 701-63-1
ASTTC50 2.5 - 50 N.m 0.005 N.m 3/8" or 1/2" 701-63-2
ASTTC100 5 - 100 N.m 0.01 N.m 3/8" or 1/2" 701-63-3
ASTTC200 10 - 200 N.m 0.02 N.m 3/8" or 1/2" 701-63-4
ASTTC500 25 - 500 N.m 0.05 N.m 3/4" 701-63-5
ASTTC800 40 - 800 N.m 0.1 N.m 3/4" 701-63-6
