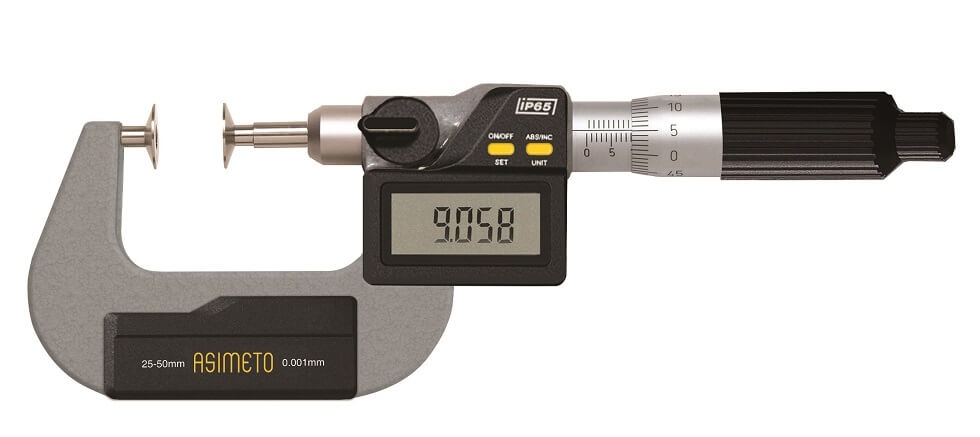

Digital Disc Micrometers

Series 145
Digital Disc Micrometers
  • Digital Disc Micrometers

FEATURES

  • Resolution:
    Digital reading: .00005" / 0.001mm
    Scale reading: .0001" / 0.01mm
  • Protection level IP65
  • For measuring gears and paper thickness
  • Non rotating spindle
  • Inch/Metric conversion
  • Read the actual absolute measuring position upon switching on the display
  • Automatic On/Off to maximize battery life
  • Absolute or incremental measuring modes
  • Support Bluetooth data transmission
    Bluetooth data output: 901-01-5
Inquiry

PRODUCT SPECIFICATIONS

INCH METRIC
RangeAccuracyCode No.
0-1" / 0-25mm ± .0001" 145-01-1
1-2" / 25-50mm ± .0002" 145-02-1
2-3" / 50-75mm ± .0002" 145-03-1
3-4" / 75-100mm ± .0002" 145-04-1
4-5" / 100-125mm ± .0002" 145-05-1
5-6" / 125-150mm ± .0002" 145-06-1
6-7" / 150-175mm ± .0002" 145-07-1
7-8" / 175-200mm ± .0002" 145-08-1
RangeAccuracyCode No.
0-25mm / 0-1" ± 0.002mm 145-01-0
25-50mm / 1-2" ± 0.002mm 145-02-0
50-75mm / 2-3" ± 0.003mm 145-03-0
75-100mm / 3-4" ± 0.003mm 145-04-0
100-125mm / 4-5" ± 0.003mm 145-05-0
125-150mm / 5-6" ± 0.003mm 145-06-0
150-175mm / 6-7" ± 0.003mm 145-07-0
175-200mm / 7-8" ± 0.003mm 145-08-0
