External Caliper Gauges

Series 404 / 405
External Caliper Gauges
  • External Caliper Gauges

FEATURES

  • Resolution:

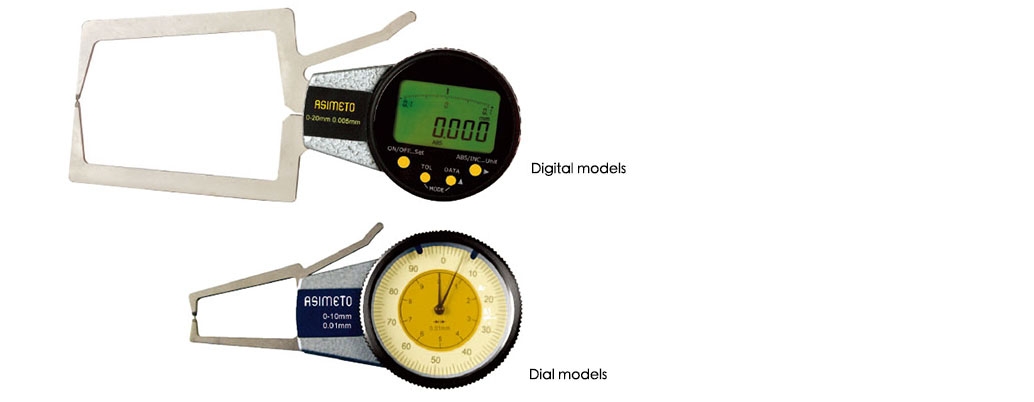

    Digital models: .0002" / 0.005mm
    Mechnical models: .0005" / 0.01mm
  • Designed to measure hard to access external work piece characteristics.
  • This measuring instrument provides comparison readings and must be set to the nominal dimension using either gauge blocks or an external setting master.
  • The digital model allows the display housing to be rotated ±170°.
Inquiry

PRODUCT SPECIFICATIONS

INCH METRIC
RangeArm LengthTipped LengthAccuracyCode No.
0-.4" 20mm 1.5mm ± .0008" 404-11-1
.4-.8" 25mm 3.0mm ± .0008" 404-12-1
.8-1.2" 30mm 6.5mm ± .0008" 404-13-1
1.2-1.6" 30mm 9.0mm ± .0008" 404-14-1
1.6-2.0" 30mm 9.0mm ± .0008" 404-15-1
0-.8" 35mm 1.5mm ± .00012" 404-21-1
.4-1.2" 55mm 3.5mm ± .00012" 404-22-1
.8-1.6" 80mm 6.5mm ± .00012" 404-23-1
1.2-2.0" 80mm 8.5mm ± .00012" 404-24-1
1.6-2.4" 80mm 8.5mm ± .00012" 404-25-1
RangeArm LengthTipped LengthAccuracyCode No.
0-10mm 20mm 1.5mm 0.02mm 404-11-0
10-20mm 25mm 3.0mm 0.02mm 404-12-0
20-30mm 30mm 6.5mm 0.02mm 404-13-0
30-40mm 30mm 9.0mm 0.02mm 404-14-0
40-50mm 30mm 9.0mm 0.02mm 404-15-0
0-20mm 35mm 1.5mm 0.03mm 404-21-0
10-30mm 55mm 3.5mm 0.03mm 404-22-0
20-40mm 80mm 6.5mm 0.03mm 404-23-0
30-50mm 80mm 8.5mm 0.03mm 404-24-0
40-60mm 80mm 8.5mm 0.03mm 404-25-0
RangeArm LengthTipped LengthAccuracyCode No.
0-.4" 20mm 1.5mm ± .0008" 405-11-1
.4-.8" 25mm 3.0mm ± .0008" 405-12-1
.8-1.2" 30mm 6.5mm ± .0008" 405-13-1
1.2-1.6" 30mm 9.0mm ± .0008" 405-14-1
1.6-2.0" 30mm 9.0mm ± .0008" 405-15-1
0-.8" 35mm 1.5mm ± .00012" 405-21-1
.4-1.2" 55mm 3.5mm ± .00012" 405-22-1
.8-1.6" 80mm 6.5mm ± .00012" 405-23-1
1.2-2.0" 80mm 8.5mm ± .00012" 405-24-1
1.6-2.4" 80mm 8.5mm ± .00012" 405-25-1
RangeArm LengthTipped LengthAccuracyCode No.
0-10mm 20mm 1.5mm 0.02mm 405-11-0
10-20mm 25mm 3.0mm 0.02mm 405-12-0
20-30mm 30mm 6.5mm 0.02mm 405-13-0
30-40mm 30mm 9.0mm 0.02mm 405-14-0
40-50mm 30mm 9.0mm 0.02mm 405-15-0
0-20mm 35mm 1.5mm 0.03mm 405-21-0
10-30mm 55mm 3.5mm 0.03mm 405-22-0
20-40mm 80mm 6.5mm 0.03mm 405-23-0
30-50mm 80mm 8.5mm 0.03mm 405-24-0
40-60mm 80mm 8.5mm 0.03mm 405-25-0
