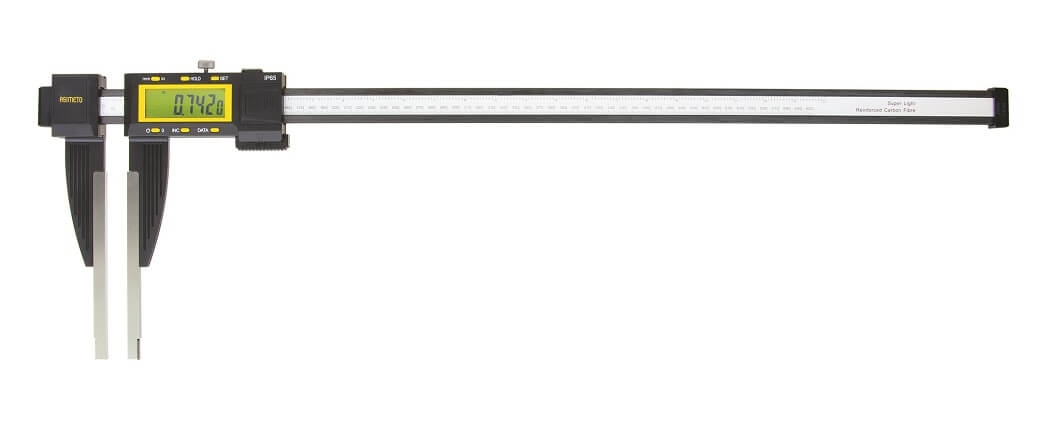

IP65 Carbon Fiber Digital Calipers

Series 316
IP65 Carbon Fiber Digital Calipers
  • IP65 Carbon Fiber Digital Calipers

FEATURES

  • Resolution: .0005" / 0.01mm
  • Protection level IP65
  • With data output
  • Built in wireless transmission
  • Round measuring faces
  • SET function
  • Main frame is made of carbon fiber
Inquiry

PRODUCT SPECIFICATIONS

INCH METRIC
RangeResolutionAccuracyJaw LengthCode No.　
0-24" / 0-600mm .0005" ± .002" 150mm 316-24-1
0-24" / 0-600mm .0005" ± .003" 200mm 316-24-2
0-24" / 0-600mm .0005" ± .004" 300mm 316-24-3
0-40" / 0-1000mm .0005" ± .0025" 150mm 316-40-1
0-40" / 0-1000mm .0005" ± .004" 200mm 316-40-2
0-40" / 0-1000mm .0005" ± .0055" 300mm 316-40-3
0-40" / 0-1000mm .0005" ± .008" 500mm 316-40-4
0-60" / 0-1500mm .0005" ± .0055" 200mm 316-60-2
0-60" / 0-1500mm .0005" ± .007" 300mm 316-60-3
0-60" / 0-1500mm .0005" ± .012" 500mm 316-60-4
0-80" / 0-2000mm .0005" ± .007" 200mm 316-80-2
0-80" / 0-2000mm .0005" ± .008" 300mm 316-80-3
0-80" / 0-2000mm .0005" ± .014" 500mm 316-80-4
RangeResolutionAccuracyJaw LengthCode No.　
0-600mm / 0-24" 0.01mm ± 0.05mm 150mm 316-24-1
0-600mm / 0-24" 0.01mm ± 0.07mm 200mm 316-24-2
0-600mm / 0-24" 0.01mm ± 0.10mm 300mm 316-24-3
0-1000mm / 0-40" 0.01mm ± 0.06mm 150mm 316-40-1
0-1000mm / 0-40" 0.01mm ± 0.10mm 200mm 316-40-2
0-1000mm / 0-40" 0.01mm ± 0.13mm 300mm 316-40-3
0-1000mm / 0-40" 0.01mm ± 0.20mm 500mm 316-40-4
0-1500mm / 0-60" 0.01mm ± 0.13mm 200mm 316-60-2
0-1500mm / 0-60" 0.01mm ± 0.17mm 300mm 316-60-3
0-1500mm / 0-60" 0.01mm ± 0.30mm 500mm 316-60-4
0-2000mm / 0-80" 0.01mm ± 0.17mm 200mm 316-80-2
0-2000mm / 0-80" 0.01mm ± 0.20mm 300mm 316-80-3
0-2000mm / 0-80" 0.01mm ± 0.35mm 500mm 316-80-4
