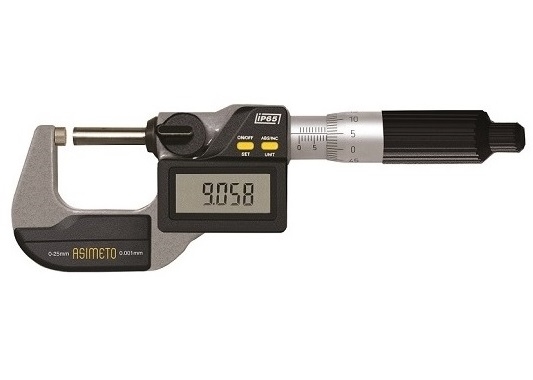

IP65 Digital Outside Micrometers

Series 105
IP65 Digital Outside Micrometers
  • IP65 Digital Outside Micrometers

FEATURES

  • Resolution:
    Digital: .00005" / 0.001mm
    Scale: .0001" / 0.01mm
  • Flatness: .000012" / 0.3μm
  • Protection level IP65
  • Read the actual absolute measuring position after switching on the display
  • Automatic On/Off to maximize battery life
  • Inch/Metric conversion
  • Absolute or incremental measuring modes
  • Carbide tipped measuring faces
  • Support Bluetooth data transmission
    Bluetooth data output: 901-01-5
Inquiry

PRODUCT SPECIFICATIONS

INCH METRIC
RangeAccuracyThimbleCode No.
0-1" / 0-25mm ± .0001" Ratchet 105-01-1
1-2" / 25-50mm ± .0002" Ratchet 105-02-1
2-3" / 50-75mm ± .0002" Ratchet 105-03-1
3-4" / 75-100mm ± .0002" Ratchet 105-04-1
4-5" / 100-125mm ± .0002" Ratchet 105-05-1
5-6" / 125-150mm ± .0002" Ratchet 105-06-1
6-7" / 150-175mm ± .0002" Ratchet 105-07-1
7-8" / 175-200mm ± .0002" Ratchet 105-08-1
8-9" / 200-225mm ± .0002" Ratchet 105-09-1
9-10" / 225-250mm ± .0003" Ratchet 105-10-1
10-11" / 250-275mm ± .0003" Ratchet 105-11-1
11-12" / 275-300mm ± .0003" Ratchet 105-12-1
RangeAccuracyThimbleCode No.
0-25mm / 0-1" ± 0.002mm Ratchet 105-01-0
25-50mm / 1-2" ± 0.002mm Ratchet 105-02-0
50-75mm / 2-3" ± 0.003mm Ratchet 105-03-0
75-100mm / 3-4" ± 0.003mm Ratchet 105-04-0
100-125mm / 4-5" ± 0.003mm Ratchet 105-05-0
125-150mm / 5-6" ± 0.003mm Ratchet 105-06-0
150-175mm / 6-7" ± 0.004mm Ratchet 105-07-0
175-200mm / 7-8" ± 0.004mm Ratchet 105-08-0
200-225mm / 8-9" ± 0.004mm Ratchet 105-09-0
225-250mm / 9-10" ± 0.004mm Ratchet 105-10-0
250-275mm / 10-11" ± 0.005mm Ratchet 105-11-0
275-300mm / 11-12" ± 0.005mm Ratchet 105-12-0
