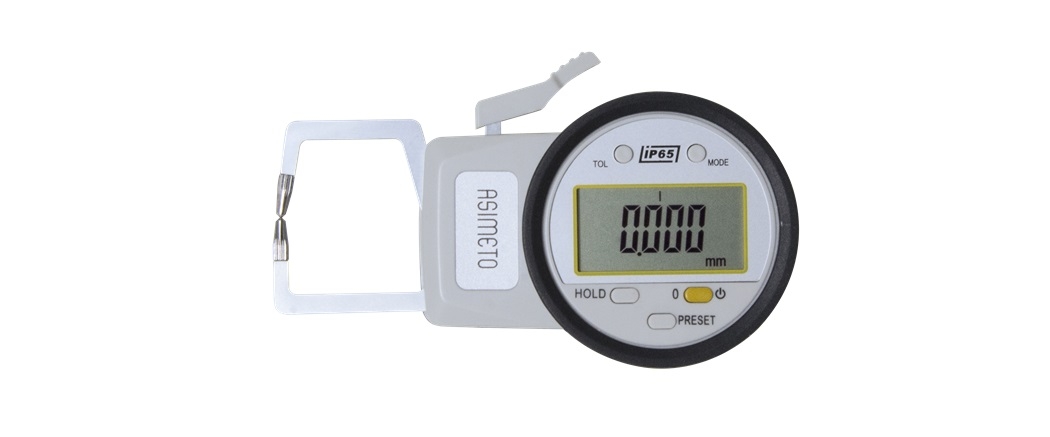

IP65 External Digital Caliper Gauges

Series 404
IP65 External Digital Caliper Gauges
  • IP65 External Digital Caliper Gauges

FEATURES

  • Protection level IP65
  • Tolerance setting
  • Preset function setting
  • Inch/Metric conversion
  • ABS/INC mode conversion
  • SPC output port is only used as an external power supply input port
  • Built-in wireless transmission (optional)
Inquiry

PRODUCT SPECIFICATIONS

INCH METRIC
RangeResolutionAccuracyArm LengthTipped LengthAccuracyCode No.
0-.4" .0001" ± .0005" 35mm 19.1mm 404-31-2
0-.8" .0002" ± .0008" 85mm 24.7mm 404-32-2
0-1.2" .0005" ± .0012" 116mm 30mm 404-33-2
0-2" .0005" ± .0016" 167mm 30mm 404-34-2
0-4" .0005" ± .003" 382mm 35mm 404-35-2
RangeResolutionAccuracyArm LengthTipped LengthAccuracyCode No.
0-10mm 0.002mm ± 0.01mm 35mm 19.1mm 404-31-2
0-20mm 0.005mm ± 0.02mm 85mm 24.7mm 404-32-2
0-30mm 0.01mm ± 0.03mm 116mm 30mm 404-33-2
0-50mm 0.01mm ± 0.04mm 167mm 30mm 404-34-2
0-100mm 0.01mm ± 0.07mm 382mm 35mm 404-35-2
RangeResolutionAccuracyArm LengthTipped LengthAccuracyCode No.
0-.4" .0001" ± .0005" 35mm 19.1mm 404-31-0
0-.8" .0002" ± .0008" 85mm 24.7mm 404-32-0
0-1.2" .0005" ± .0012" 116mm 30mm 404-33-0
0-2" .0005" ± .0016" 167mm 30mm 404-34-0
0-4" .0005" ± .003" 382mm 35mm 404-35-0
RangeResolutionAccuracyArm LengthTipped LengthAccuracyCode No.
0-10mm 0.002mm ± 0.01mm 35mm 19.1mm 404-31-0
0-20mm 0.005mm ± 0.02mm 85mm 24.7mm 404-32-0
0-30mm 0.01mm ± 0.03mm 116mm 30mm 404-33-0
0-50mm 0.01mm ± 0.04mm 167mm 30mm 404-34-0
0-100mm 0.01mm ± 0.07mm 382mm 35mm 404-35-0
