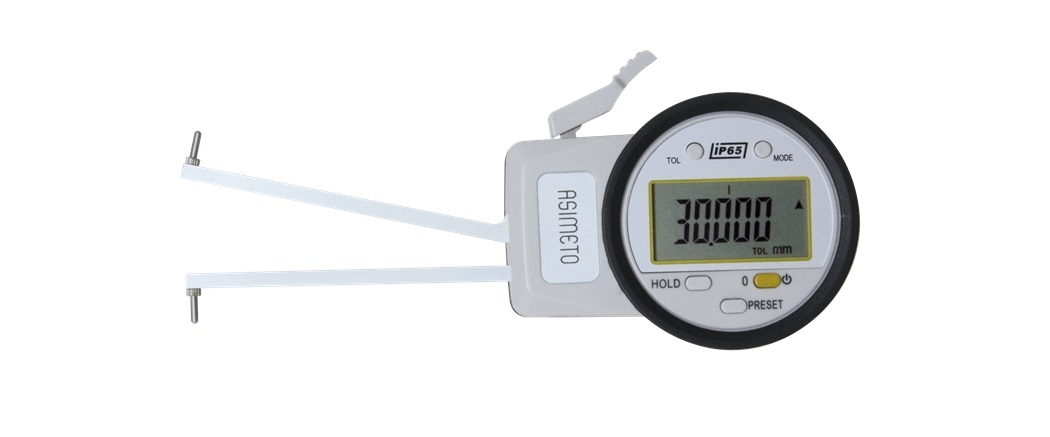

IP65 Internal Digital Caliper Gauges

Series 400
IP65 Internal Digital Caliper Gauges
  • IP65 Internal Digital Caliper Gauges

FEATURES

  • Protection level IP65
  • Tolerance setting
  • Preset function setting
  • Inch/Metric conversion
  • ABS/INC mode conversion
  • SPC output port is only used as an external power supply input port
  • Built-in wireless transmission (optional)
Inquiry

PRODUCT SPECIFICATIONS

INCH METRIC
RangeResolutionAccuracyArm LengthTipped LengthAccuracyCode No.
.2-.6" .0001" ± .0006" 35mm 2.3mm 400-31-2
.4-1.2" .0002" ± .001" 85mm 5.2mm 400-32-2
1.2-2" .0002" ± .001" 85mm 7.2mm 400-33-2
2-4" .0005" ± .002" 236mm 11.7mm 400-34-2
4-6" .0005" ± .002" 236mm 11.7mm 400-35-2
6-8" .0005" ± .002" 236mm 11.7mm 400-36-2
RangeResolutionAccuracyArm LengthTipped LengthAccuracyCode No.
5-15mm 0.002mm ± 0.015mm 35mm 2.3mm 400-31-2
10-30mm 0.005mm ± 0.025mm 85mm 5.2mm 400-32-2
30-50mm 0.005mm ± 0.025mm 85mm 7.2mm 400-33-2
50-100mm 0.01mm ± 0.05mm 236mm 11.7mm 400-34-2
100-150mm 0.01mm ± 0.05mm 236mm 11.7mm 400-35-2
150-200mm 0.01mm ± 0.05mm 236mm 11.7mm 400-36-2
RangeResolutionAccuracyArm LengthTipped LengthAccuracyCode No.
.2-.6" .0001" ± .0006" 35mm 2.3mm 400-31-0
.4-1.2" .0002" ± .001" 85mm 5.2mm 400-32-0
1.2-2" .0002" ± .001" 85mm 7.2mm 400-33-0
2-4" .0005" ± .002" 236mm 11.7mm 400-34-0
4-6" .0005" ± .002" 236mm 11.7mm 400-35-0
6-8" .0005" ± .002" 236mm 11.7mm 400-36-0
RangeResolutionAccuracyArm LengthTipped LengthAccuracyCode No.
5-15mm 0.002mm ± 0.015mm 35mm 2.3mm 400-31-0
10-30mm 0.005mm ± 0.025mm 85mm 5.2mm 400-32-0
30-50mm 0.005mm ± 0.025mm 85mm 7.2mm 400-33-0
50-100mm 0.01mm ± 0.05mm 236mm 11.7mm 400-34-0
100-150mm 0.01mm ± 0.05mm 236mm 11.7mm 400-35-0
150-200mm 0.01mm ± 0.05mm 236mm 11.7mm 400-36-0
