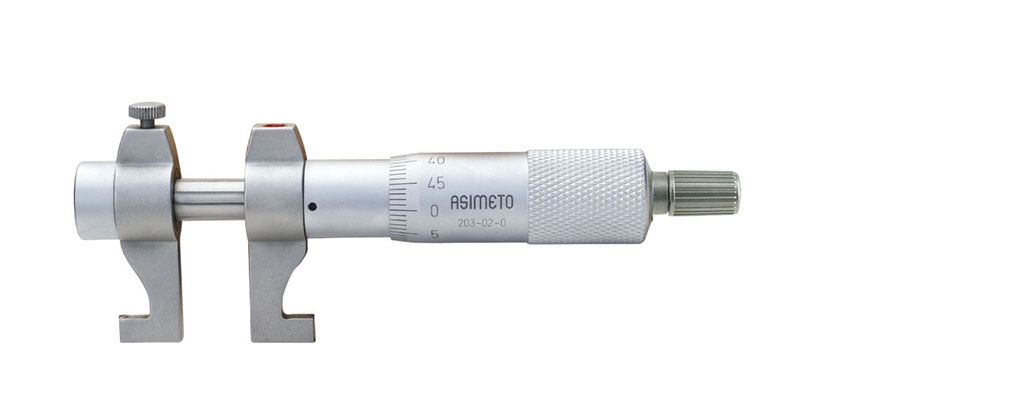

Inside Micrometers

Series 203
Inside Micrometers
  • Inside Micrometers

FEATURES

  • Resolution: .001" / 0.01mm
  • Designed for the measurement of intricate internal characteristics
  • .2-1.2" / 5-30mm and 1-2" / 25-50mm range are supplied with setting ring
  • Ratchet stop
Inquiry

PRODUCT SPECIFICATIONS

INCH METRIC
RangeResolutionAccuracyCode No.　
.2-1.2" .001" ± .0001" 203-01-1
1.0-2.0" .001" ± .0002" 203-02-1
2.0-3.0" .001" ± .0002" 203-03-1
3.0-4.0" .001" ± .0002" 203-04-1
4.0-5.0" .001" ± .0002" 203-05-1
5.0-6.0" .001" ± .0002" 203-06-1
6.0-7.0" .001" ± .0002" 203-07-1
7.0-8.0" .001" ± .0002" 203-08-1
RangeResolutionAccuracyCode No.　
5-30mm 0.01mm 0.005mm 203-01-0
25-50mm 0.01mm 0.006mm 203-02-0
50-75mm 0.01mm 0.007mm 203-03-0
75-100mm 0.01mm 0.008mm 203-04-0
100-125mm 0.01mm 0.009mm 203-05-0
125-150mm 0.01mm 0.009mm 203-06-0
150-175mm 0.01mm 0.010mm 203-07-0
175-200mm 0.01mm 0.010mm 203-08-0
