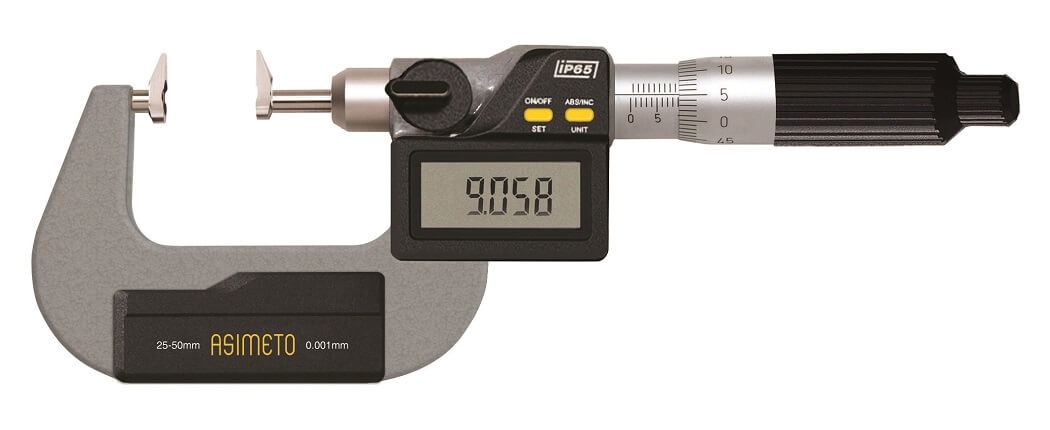

Digital Jaw Type Micrometers

Series 126
Digital Jaw Type Micrometers
  • Digital Jaw Type Micrometers

FEATURES

  • Resolution:
    Digital reading: .00005" / 0.001mm
    Scale reading: .0001" / 0.01mm
  • Protection level IP65
  • For measuring gears and step thickness
  • Non rotating spindle
  • Jaw type measuring faces
  • Inch/Metric conversion
  • Read the actual absolute measuring position upon switching on the display
  • Automatic On/Off to maximize battery life
  • Absolute or incremental measuring modes
  • Support Bluetooth data transmission
    Bluetooth data output: 901-01-5
Inquiry

PRODUCT SPECIFICATIONS

INCH METRIC
RangeAccuracyCode No.
0-1" / 0-25mm ± .0001" 126-51-1
1-2" / 25-50mm ± .0002" 126-52-1
2-3" / 50-75mm ± .0002" 126-53-1
3-4" / 75-100mm ± .0002" 126-54-1
4-5" / 100-125mm ± .0002" 126-55-1
5-6" / 125-150mm ± .0002" 126-56-1
6-7" / 150-175mm ± .0002" 126-57-1
7-8" / 175-200mm ± .0002" 126-58-1
RangeAccuracyCode No.
0-25mm / 0-1" ± 0.002mm 126-51-0
25-50mm / 1-2" ± 0.002mm 126-52-0
50-75mm / 2-3" ± 0.003mm 126-53-0
75-100mm / 3-4" ± 0.003mm 126-54-0
100-125mm / 4-5" ± 0.003mm 126-55-0
125-150mm / 5-6" ± 0.003mm 126-56-0
150-175mm / 6-7" ± 0.004mm 126-57-0
175-200mm / 7-8" ± 0.004mm 126-58-0
