Magnetic V-Blocks

Series 609
Magnetic V-Blocks
  • Magnetic V-Blocks

FEATURES

  • Used for Gringing, Light Milling, Drilling & Inspection of Round & Square Jobs.
  • The top (V surface) and the end face can be adsorbed.
  • The switch lever can be loaded and unloaded.
  • Constitute a set of two.
Inquiry

PRODUCT SPECIFICATIONS

INCH METRIC
PowerDimensionsScope of ApplicationCode No.　

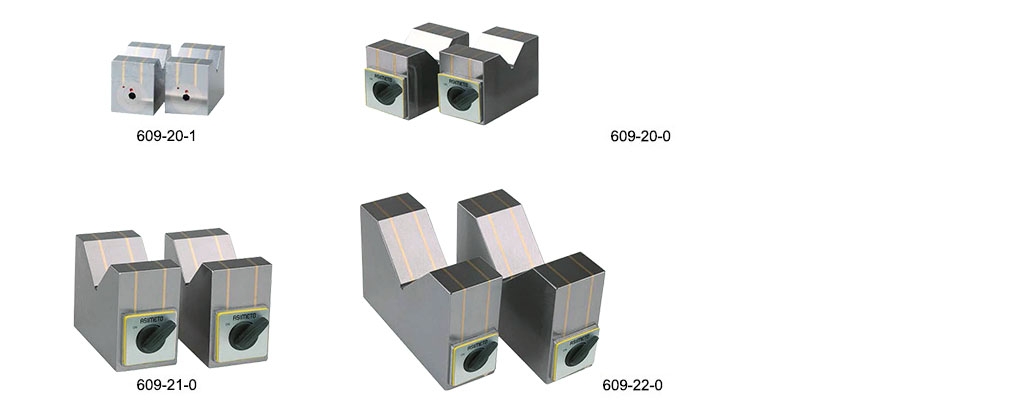

15 kgf 70x40x50mm Φ5-48mm 609-20-1
15 kgf 70x40x50mm Φ5-48mm 609-20-0
20 kgf 100x50x80mm Φ5-80mm 609-21-0
23 kgf 100x50x80mm Φ6-100m 609-22-0
