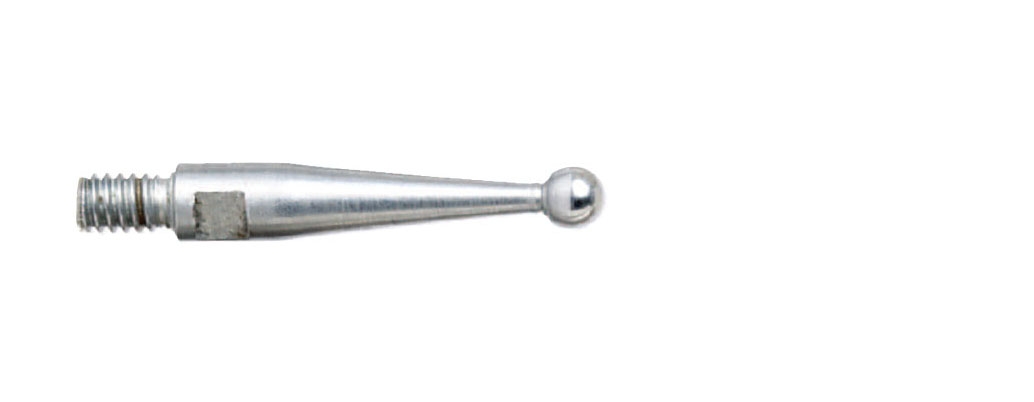

Series 500

PRODUCT SPECIFICATIONS

Indicator RangeTip Dia.LengthCode No.
0.2mm/0.002mm Φ1mm 13.3mm 500-75-1
0.2mm/0.002mm Φ2mm 13.8mm 500-76-1
0.2mm/0.002mm Φ3mm 14.3mm 500-77-1
0.5mm/0.01mm Φ1mm 14.9mm 500-55-1
0.5mm/0.01mm Φ2mm 15.4mm 500-52-1
0.5mm/0.01mm Φ3mm 15.9mm 500-57-1
0.8mm/0.01mm Φ1mm 14.9mm 500-55-1
0.8mm/0.01mm Φ2mm 15.4mm 500-52-1
0.8mm/0.01mm Φ3mm 15.9mm 500-57-1
1.0mm/0.01mm 19.3mm 19.3mm 500-11-1
1.0mm/0.01mm 19.8mm 19.8mm 500-12-1
1.0mm/0.01mm 20.3mm 20.3mm 500-13-1
1.6mm/0.01mm 19.3mm 19.3mm 500-85-1
1.6mm/0.01mm 19.8mm 19.8mm 500-88-1
1.6mm/0.01mm 20.3mm 20.3mm 500-89-1
Indicator RangeTip Dia.LengthCode No.
0.008"/ 0.0001" Φ1mm 13.3mm 500-75-1
0.008"/ 0.0001" Φ2mm 13.8mm 500-76-1
0.008"/ 0.0001" Φ3mm 14.3mm 500-77-1
0.03"/0 .0005" Φ1mm 14mm 500-61-1
0.03"/0 .0005" Φ2mm 14.5mm 500-62-1
0.03"/0 .0005" Φ3mm 15.0mm 500-63-1
0.06"/0 .001"
0.06"/0 .0005"
Φ1mm 18.5mm 500-81-1
0.06"/0 .001"
0.06"/0 .0005"
Φ2mm 19.0mm 500-86-1
0.06"/0 .001"
0.06"/0 .0005"
Φ3mm 19.5mm 500-83-1
Indicator RangeTip Dia.LengthCode No.
0.2mm/0.002mm Φ2mm 13.8mm 500-76-2
0.2mm/0.002mm Φ3mm 14.3mm 500-77-2
0.5mm/0.01mm Φ2mm 15.4mm 500-52-2
0.5mm/0.01mm Φ3mm 15.9mm 500-57-2
0.8mm/0.01mm Φ2mm 15.4mm 500-52-2
0.8mm/0.01mm Φ3mm 15.9mm 500-57-2
1.0mm/0.01mm 19.8mm 19.8mm 500-12-2
1.0mm/0.01mm 20.3mm 20.3mm 500-13-2
1.6mm/0.01mm 19.8mm 19.8mm 500-88-2
1.6mm/0.01mm 20.3mm 20.3mm 500-89-2
Indicator RangeTip Dia.LengthCode No.
0.008"/ 0.0001" Φ2mm 13.8mm 500-76-2
0.008"/ 0.0001" Φ3mm 14.3mm 500-77-2
0.03"/0 .0005" Φ2mm 14.5mm 500-62-2
0.03"/0 .0005" Φ3mm 15.0mm 500-63-2
0.06"/0 .001"
0.06"/0 .0005"
Φ2mm 19.0mm 500-86-2
0.06"/0 .001"
0.06"/0 .0005"
Φ3mm 19.5mm 500-83-2
Indicator RangeTip Dia.LengthCode No.
0.2mm/0.002mm Φ2mm 13.8mm 500-76-3
0.5mm/0.01mm Φ2mm 15.4mm 500-52-3
0.8mm/0.01mm Φ2mm 15.4mm 500-52-3
1.0mm/0.01mm 19.8mm 19.8mm 500-12-3
1.6mm/0.01mm 19.8mm 19.8mm 500-88-3
Indicator RangeTip Dia.LengthCode No.
0.008"/ 0.0001" Φ2mm 13.8mm 500-76-2
0.03"/0 .0005" Φ2mm 14.5mm 500-62-3
0.06"/0 .001"
0.06"/0 .0005"
Φ2mm 19.0mm 500-86-3
