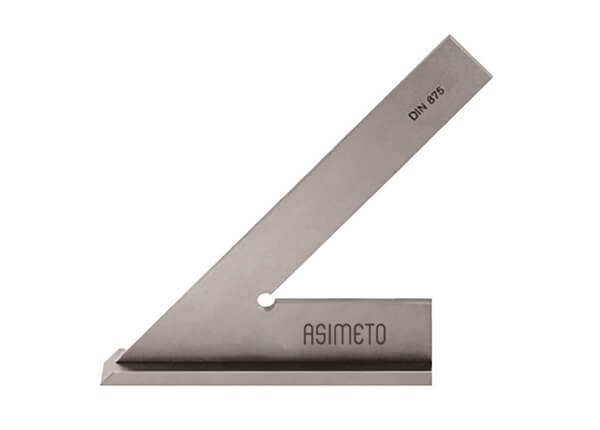

45° Point Angle Squares With Base

Series 637
45° Point Angle Squares With Base
  • 45° Point Angle Squares With Base

FEATURES

  • Made of hardened Stainless Steel
Inquiry

PRODUCT SPECIFICATIONS

INCH METRIC
Size
(mm)		Inside (α)
Accuracy		Outside (β)
Accuracy		C
(mm)		D
(mm)		H
(mm)		E
(mm)		Code No.
120 x 80 29μm 33μm 20 20 5 20 637-01-2
150 x 100 32μm 36μm 20 20 5 20 637-02-2
200 x 130 36μm 41μm 30 30 5 25 637-03-2
Size
(mm)		Inside (α)
Accuracy		Outside (β)
Accuracy		C
(mm)		D
(mm)		H
(mm)		E
(mm)		Code No.
120 x 80 29μm 33μm 20 20 5 20 637-01-2
150 x 100 32μm 36μm 20 20 5 20 637-02-2
200 x 130 36μm 41μm 30 30 5 25 637-03-2
