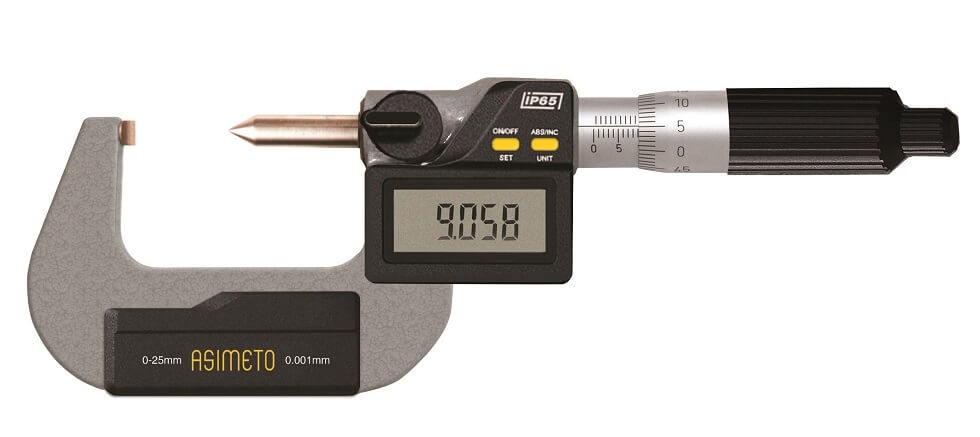

Digital Single Point Micrometers

Series 135
Digital Single Point Micrometers
  • Digital Single Point Micrometers

FEATURES

  • Resolution:
    Digital reading: .00005" / 0.001mm
    Scale on digital models: .0001" / 0.01mm
  • Protection level IP65
  • For measuring the height of crimp contacts
  • Carbide tipped measuring faces
  • Ratchet stop
  • Inch/Metric conversion
  • Read the actual absolute measuring position upon switching on the display
  • Automatic On/Off to maximize battery life
  • Absolute or incremental measuring modes
  • Support Bluetooth data transmission
    Bluetooth data output: 901-01-5
Inquiry

PRODUCT SPECIFICATIONS

INCH METRIC
RangeAccuracyAnvil TypeCode No.
0-1"/0-25mm ± .0001" B 135-01-1
1-2"/25-50mm ± .0002" B 135-02-1
2-3"/50-75mm ± .0002" B 135-03-1
3-4"/75-100mm ± .0002" B 135-04-1
0-1"/0-25mm ± .0001" C 135-01-3
0-1"/0-25mm ± .0001" E 135-01-5
RangeAccuracyAnvil TypeCode No.
0-25mm/0-1" ± 0.002mm B 135-01-0
25-50mm/1-2" ± 0.002mm B 135-02-0
50-75mm/2-3" ± 0.003mm B 135-03-0
75-100mm/3-4" ± 0.003mm B 135-04-0
0-25mm/0-1" ± 0.002mm C 135-01-2
0-25mm/0-1" ± 0.002mm E 135-01-4
