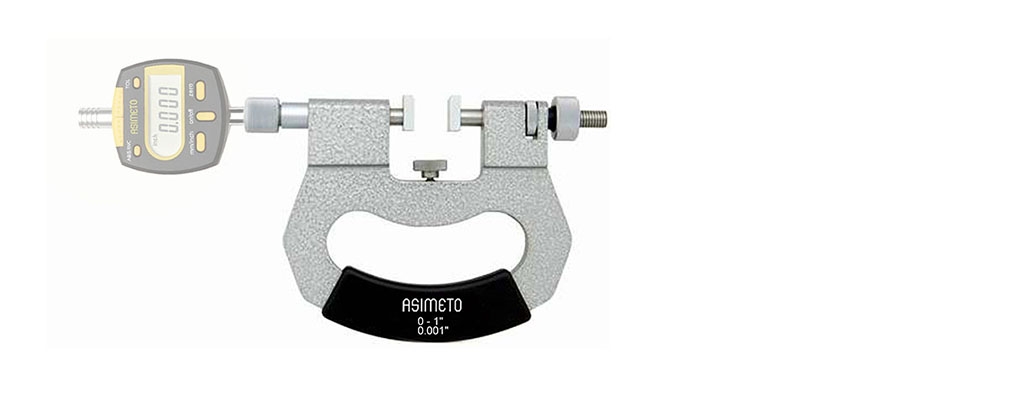

Snap Gauges

Series 182
Snap Gauges
  • Snap Gauges

FEATURES

  • Dial gauge is not included and it is optional, refer to 405-95-4 or 405-95-5
  • (The measuring resolution is indicative of the dial gauge)
  • 8mm diameter stem dial gauge
  • Suitable for quickly measuring dimensions of mass-produced work pieces
  • The measuring anvils are designed with an angle to allow the easy insertion of the work piece
  • Dimension of measuring face: 14x11mm
Inquiry

PRODUCT SPECIFICATIONS

INCH METRIC
RangeLBCode No.
0-1" 42mm 20mm 182-01-1
0-2" 69mm 32.5mm 182-02-1
2-3" 94mm 45mm 182-03-1
3-4" 119mm 57.5mm 182-04-1
4-5" 144mm 70mm 182-05-1
5-6" 169mm 82.5mm 182-06-1
6-7" 194mm 95mm 182-07-1
7-8" 219mm 107.5mm 182-08-1
8-9" 244mm 120mm 181-09-1
9-10" 269mm 132.5mm 182-10-1
10-11" 294mm 145mm 182-11-1
11-12" 319mm 157.5mm 182-12-1
RangeLBCode No.
0-25mm 42mm 20mm 182-01-0
25-50mm 69mm 32.5mm 182-02-0
50-75mm 94mm 45mm 182-03-0
75-100mm 119mm 57.5mm 182-04-0
100-125mm 144mm 70mm 182-05-0
125-150mm 169mm 82.5mm 182-06-0
150-175mm 194mm 95mm 182-07-0
175-200mm 219mm 107.5mm 182-08-0
200-225mm 244mm 120mm 182-09-0
225-250mm 269mm 132.5mm 182-10-0
250-275mm 294mm 145mm 182-11-0
275-300mm 319mm 157.5mm 182-12-0
