Thin Type Magnetic Holder

Series 609
Thin Type Magnetic Holder
  • Thin Type Magnetic Holder

FEATURES

  • Suitable as a base for securing jigs and measuring equipment on an iron surface plate or machine table and as a temporary base for laser and optical measurement
  • Since these bases are of switchover type permanent magnetic bases, they are recommended for applications that require fine adjustment and accuracy
  • Simple ON/ OFF operation with the lever
  • Thin and powerful magnetic force
  • Dry specification
Inquiry

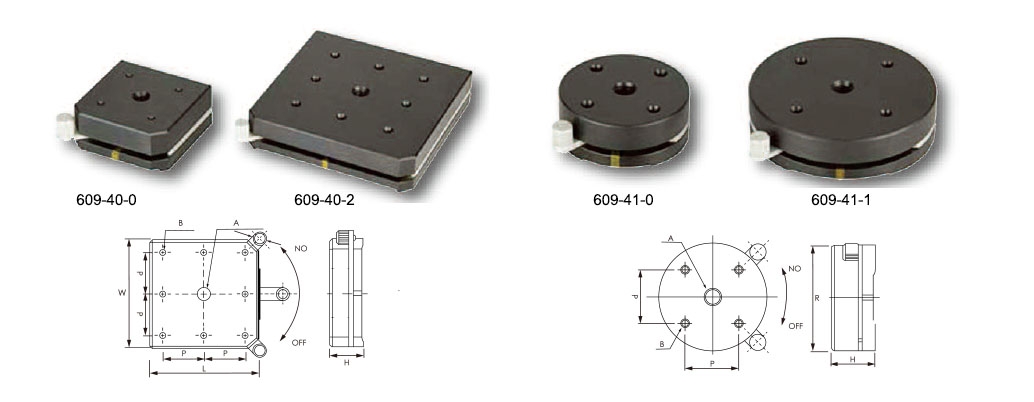

PRODUCT SPECIFICATIONS

INCH METRIC
Holding
Power		Dimension
(W x L x H x P x  R)		Thread
(A)		Thread
(B)		Code No.　
6.5 kg 45mm x 45mm x 20mm x 25mm x - M8 4-M4 609-40-0
20 kg 65mm x 65mm x 20mm x 25mm x - M8 8-M4 609-40-1
25 kg 90mm x 90mm x 20mm x 25mm x - M8 8-M4 609-40-2
80 kg 125mm x 125mm x 30mm x 50mm x - M16 8-M6 609-40-3
6 kg - x - x - x 20mm x 50mm M8 4-M4 609-41-0
20 kg - x - x - x 20mm x 75mm M8 4-M4 609-41-1
