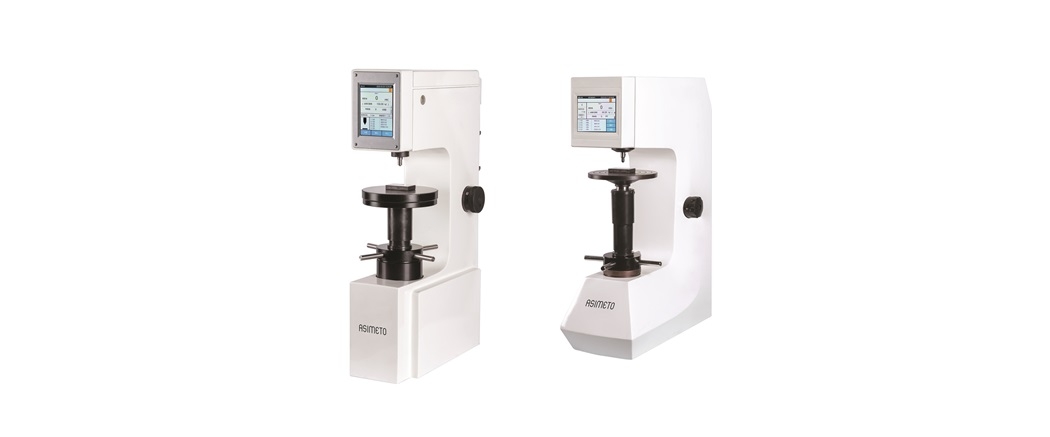

Digital Rockwell Hardness Testers

Series 640
Digital Rockwell Hardness Testers
  • Digital Rockwell Hardness Testers

FEATURES

  • Half automatic hardness tester except loading initial force and change force knob.
  • Operation is very convenient and fast.
  • Color touch screen, displays loading force, indenter type, dwell time, and conversion scale.
  • Auto hardness conversion to others scales, no need to check table and improve working efficiency.
  • Support multiple languages: English, Turkish, German, etc. Convenient for local customers operation
  • Optional blue tooth mini printer is available.

STANDARD ACCESSORIES

  • Ø1.5875mm Carbide ball penetrator       1pc
  • V-notch anvil                                                 1pc
  • Ø58 mm flat anvil                                         1pc
  • Ø150mm flat anvil                                        1pc
  • Rockwell diamond indenter                      1pc
  • 20-30HRC test block                                  1pc
  • 35-55HRC test block                                  1pc
  • 60-70HRC test block                                  1pc
  • 80-88HRC test block                                  1pc
  • 85-95HRC test block                                  1pc
  • Instruction manual                                     1pc
Inquiry

PRODUCT SPECIFICATIONS

INCH METRIC
RangeTest ForceTest HeightThroat DepthCode No.　
20-95HRA
10-100HRB
10-70HRC		 588.4, 980.7, 1471N
(60, 100, 150kgf)		 170mm 135mm 640-01-2
20-95HRA
10-100HRB
10-70HRC		 588.4, 980.7, 1471N
(60, 100, 150kgf)		 210mm 165mm 640-01-3
RangeTest ForceTest HeightThroat DepthCode No.　
20-95HRA
10-100HRB
10-70HRC		 588.4, 980.7, 1471N
(60, 100, 150kgf)		 170mm 135mm 640-01-2
20-95HRA
10-100HRB
10-70HRC		 588.4, 980.7, 1471N
(60, 100, 150kgf)		 210mm 165mm 640-01-3
Optional AccessoryCode No.
Rockwell Hardness Standard Block (5pcs set) 640-81-0
Rockwell Hardness Test Block 20-30HRC 640-81-1
Rockwell Hardness Test Block 35-55HRC 640-81-2
Rockwell Hardness Test Block 60-70HRC 640-81-3
Rockwell Hardness Test Block 80-88HRA 640-81-4
Rockwell Hardness Test Block 85-95HRB 640-81-5
Ø1.5875mm Carbied Ball Indenter 640-83-0
Rockwell Diamond Indenter 640-86-0
