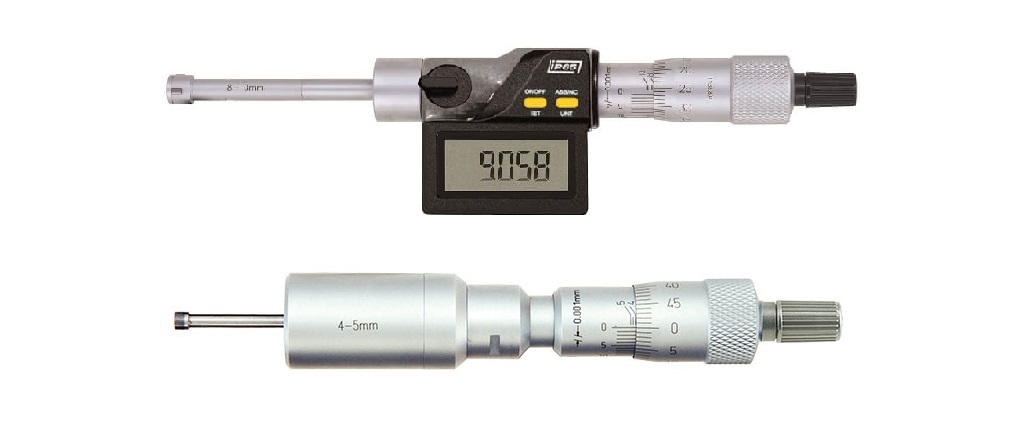

Two and Three Point Internal Micrometers (2-12mm / .08-.5")

Series 208 / 209
Two and Three Point Internal Micrometers (2-12mm / .08-.5")
  • Two and Three Point Internal Micrometers (2-12mm / .08-.5")

FEATURES

  • Resolution:
    Digital models: .00005" / 0.001mm
    Mechanical models: .0001" / 0.001mm
  • Digital models: Protection level IP65
  • Setting Ring supplied
  • Measuring contact points are designed to allow measurements near to the bottom of blind holes
  • Models up to and including 6mm / .24" have two measuing points, models (over 6mm / .24") with three measuring points
  • Digital models support Bluetooth data transmission
    Bluetooth data output: 901-01-5
Inquiry

PRODUCT SPECIFICATIONS

INCH METRIC
RangeAccuracyRod LengthExtension RodCode No.　
.08-.1" / 2-2.5mm ± .0001" 12.5mm - 208-06-1
.1-.12" / 2.5-3mm ± .0001" 12.5mm - 208-07-1
.16-.2" / 3-4mm ± .0001" 22.5mm - 208-08-1
1-1.2" / 4-5mm ± .0001" 22.5mm - 208-09-1
.2-.24" / 5-6mm ± .0001" 22.5mm - 208-10-1
.24-.28" ± .0001" 22.5mm - 208-10-5
.275-.35" / 6-8mm ± .0001" 53.5mm 100mm 208-11-1
.35-.425" / 8-10mm ± .0001" 53.5mm 100mm 208-12-1
.425-.5" / 10-12mm ± .0001" 53.5mm 100mm 208-13-1
RangeAccuracyRod LengthExtension RodCode No.　
2-2.5mm / .08-.1" 0.004mm 12.5mm - 208-06-0
2.5-3mm / .1-.12" 0.004mm 12.5mm - 208-07-0
3-4mm / .16-.2" 0.004mm 22.5mm - 208-08-0
4-5mm / .2-.24" 0.004mm 22.5mm - 208-09-0
5-6mm / .24-.28" 0.004mm 22.5mm - 208-10-0
6-8mm / .275-.35" 0.004mm 53.5mm 100mm 208-11-0
8-10mm / .35-.425" 0.004mm 53.5mm 100mm 208-12-0
10-12mm / .425-.5" 0.004mm 53.5mm 100mm 208-13-0
RangeAccuracyRod LengthExtension RodCode No.　
.08-.1" ± .0001" 12.5mm - 209-06-1
.1-.12" ± .0001" 12.5mm - 209-07-1
.16-.2" ± .0001" 22.5mm - 209-08-1
1-1.2" ± .0001" 22.5mm - 209-09-1
.2-.24" ± .0001" 22.5mm - 209-10-1
.24-.28" ± .0001" 22.5mm - 209-10-5
.275-.35" ± .0001" 53.5mm 100mm 209-11-1
.35-.425" ± .0001" 53.5mm 100mm 209-12-1
.425-.5" ± .0001" 53.5mm 100mm 209-13-1
RangeAccuracyRod LengthExtension RodCode No.　
2-2.5mm 0.004mm 12.5mm - 209-06-0
2.5-3mm 0.004mm 12.5mm - 209-07-0
3-4mm 0.004mm 22.5mm - 209-08-0
4-5mm 0.004mm 22.5mm - 209-09-0
5-6mm 0.004mm 22.5mm - 209-10-0
6-8mm 0.004mm 53.5mm 150mm 209-11-0
8-10mm 0.004mm 53.5mm 150mm 209-12-0
10-12mm 0.004mm 53.5mm 150mm 209-13-0
