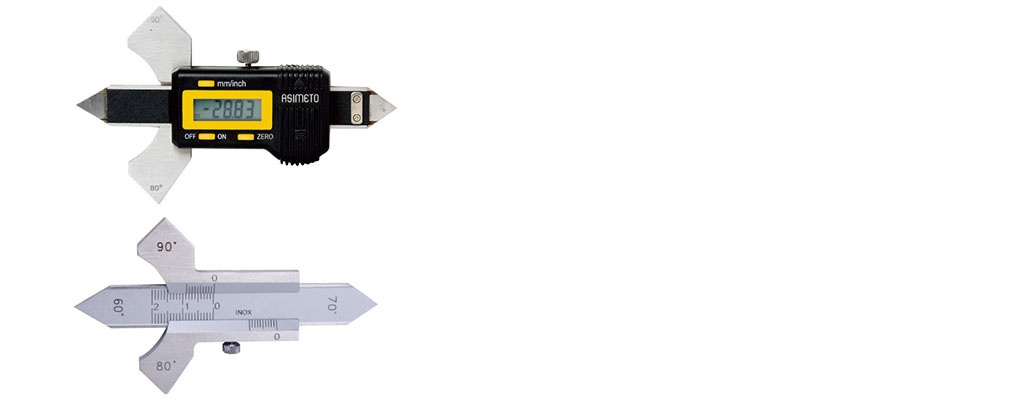

Welding Fillet Gauges

Series 325
Welding Fillet Gauges
  • Welding Fillet Gauges

FEATURES

  • Resolution:
    Digital models: .0005" / 0.01mm
    Mechanical models: 0.1mm
  • Measures the thickness of a weld along the intersecting vector of two right angle welded objects
  • Inch/Metric conversion on digital model
Inquiry

PRODUCT SPECIFICATIONS

INCH METRIC
RangeAccuracyCode No.
0-.5" / 0-12.5mm ± .0015" 325-05-6
0-.8" / 0-20mm ± .0015" 325-08-6
RangeAccuracyCode No.
0-12.5mm / 0-.5" ±0.03mm 325-05-6
0-20mm / 0-.8" ±0.03mm 325-08-6
RangeAccuracyCode No.
0-20mm ±0.3mm 325-58-6
