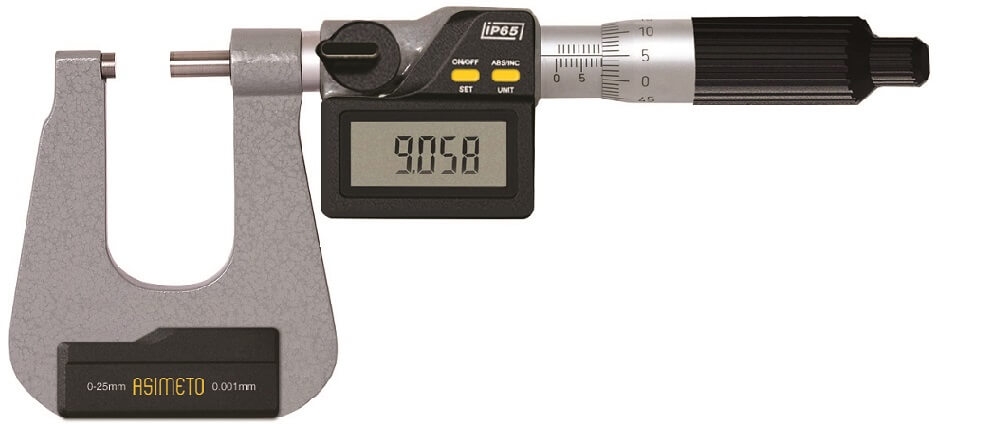

数显深弓架千分尺

Series 157
数显深弓架千分尺
  • 数显深弓架千分尺

技术特性

  • 分辨率：英制 .00005" / 公制 0.001mm
  • IP65 防尘防水等级
  • 适用于测量钢板、纸张、塑料板等板材的厚度
  • 三种测头可选
  • 硬质合金测量面
  • 公英制转换
  • 通电后显示绝对测量的起始值
  • 自动电源开关，延长电池寿命
  • 可提供绝对值 / 相对值测量模式
  • 支持蓝牙数据传输
    蓝牙数据输出：901-01-5
詢價

規格表標題

INCH METRIC
弓架深度测量范围精度测钻类型货号
50mm 0-1" / 0-25mm ± .0002" A 157-01-1
50mm 1-2" / 25-50mm ± .0002" A 157-02-1
100mm 0-1"/0-25mm ± .0002" A 157-01-3
100mm 1-2" / 25-50mm ± .0002" A 157-02-3
150mm 0-1" / 0-25mm ± .0003" A 157-01-5
150mm 1-2" / 25-50mm ± .0003" A 157-02-5
300mm 0-1" / 0-25mm ± .0003" A 157-01-7
300mm 1-2" / 25-50mm ± .0003" A 157-02-7
50mm 0-1" / 0-25mm ± .0002" B 157-31-1
50mm 1-2" / 25-50mm ± .0002" B 157-32-1
100mm 0-1"/0-25mm ± .0002" B 157-31-3
100mm 1-2" / 25-50mm ± .0002" B 157-32-3
150mm 0-1" / 0-25mm ± .0003" B 157-31-5
150mm 1-2" / 25-50mm ± .0003" B 157-32-5
300mm 0-1" / 0-25mm ± .0003" B 157-31-7
300mm 1-2" / 25-50mm ± .0003" B 157-32-7
50mm 0-1" / 0-25mm ± .0002" C 157-51-1
50mm 1-2" / 25-50mm ± .0002" C 157-52-1
100mm 0-1"/0-25mm ± .0002" C 157-51-3
100mm 1-2" / 25-50mm ± .0002" C 157-52-3
150mm 0-1" / 0-25mm ± .0003" C 157-51-5
150mm 1-2" / 25-50mm ± .0003" C 157-52-5
弓架深度测量范围精度测砧类型货号
50mm 0-1" / 0-25mm ± 0.002mm A 157-01-0
50mm 1-2" / 25-50mm ± 0.002mm A 157-02-0
100mm 0-1"/0-25mm ± 0.003mm A 157-01-2
100mm 1-2" / 25-50mm ± 0.003mm A 157-02-2
150mm 0-1" / 0-25mm ± 0.003mm A 157-01-4
150mm 1-2" / 25-50mm ± 0.003mm A 157-02-4
300mm 0-1" / 0-25mm ± 0.004mm A 157-01-6
300mm 1-2" / 25-50mm ± 0.004mm A 157-02-6
50mm 0-1" / 0-25mm ± 0.002mm B 157-31-0
50mm 1-2" / 25-50mm ± 0.002mm B 157-32-0
100mm 0-1"/0-25mm ± 0.003mm B 157-31-2
100mm 1-2" / 25-50mm ± 0.003mm B 157-32-2
150mm 0-1" / 0-25mm ± 0.003mm B 157-31-4
150mm 1-2" / 25-50mm ± 0.003mm B 157-32-4
300mm 0-1" / 0-25mm ± 0.004mm B 157-31-6
300mm 1-2" / 25-50mm ± 0.004mm B 157-32-6
50mm 0-1" / 0-25mm ± 0.002mm C 157-51-0
50mm 1-2" / 25-50mm ± 0.002mm C 157-52-0
100mm 0-1"/0-25mm ± 0.003mm C 157-51-2
100mm 1-2" / 25-50mm ± 0.003mm C 157-52-2
150mm 0-1" / 0-25mm ± 0.003mm C 157-51-4
150mm 1-2" / 25-50mm ± 0.003mm C 157-52-4
B
