| 描述 | 测量范围 | 分辨率 | 精度 | 货号 | |
|---|
| 焊脚长度 |
0-20mm |
1mm |
± 0.3mm |

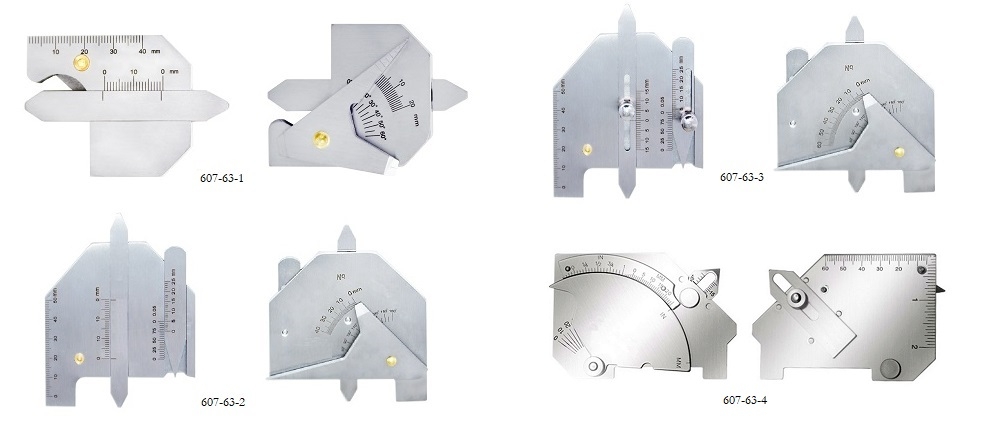

607-63-1 |
|
| 焊脚高度 |
0-20mm |
1mm |
± 0.3mm |
|
|
|
| 焊縫高度 |
0-20mm |
1mm |
± 0.3mm |
|
|
|
| 焊缝厚度 |
0-10mm |
1mm |
± 0.3mm |
|
|
|
| 坡口角度 |
0-60° |
5° |
± 1° |
|
|
|
| 间隙 |
1-3.5mm |
0.5mm |
± 0.2mm |
|
|
|
| 长度 |
0-40mm |
1mm |
± 0.3mm |
|
|
|
| L x W |
56 x 47mm |
|
|
|
| 焊脚长度 |
0-14mm |
1mm |
± 0.05mm |
607-63-2 |
|
| 焊縫高度 |
0-10mm |
1mm |
± 0.5mm |
|
|
|
| 咬边深度 |
0-5mm |
0.05mm |
± 0.3mm |
|
|
|
| 焊缝厚度 |
0-13mm |
1mm |
± 0.3mm |
|
|
|
| 焊缝长度 |
0-40mm |
1mm |
± 1mm |
|
|
|
| 坡口角度 |
60°-150° |
5° |
± 1° |
|
|
|
| 间隙 |
0.5-5mm |
1mm |
± 0.5mm |
|
|
|
| 长度 |
0-40mm |
1mm |
± 1mm |
|
|
|
| L x W |
62 x 77mm |
|
|
|
| 焊脚长度 |
0-15mm |
1mm |
± 0.05mm |
607-63-3 |
|
| 焊縫高度 |
0-15mm |
1mm |
± 0.5mm |
|
|
|
| 咬边深度 |
0-5mm |
0.05mm |
± 0.3mm |
|
|
|
| 焊缝厚度 |
0-13mm |
1mm |
± 0.5mm |
|
|
|
| 焊缝长度 |
0-60mm |
1mm |
± 1mm |
|
|
|
| 坡口角度 |
80°-160° |
5° |
± 1° |
|
|
|
| 间隙 |
1-6mm |
1mm |
± 0.5mm |
|
|
|
| 长度 |
0-50mm |
1mm |
± 1mm |
|
|
|
| L x W |
56 x 47mm |
|
|
|
| 焊脚长度 |
0-25mm / 0-1" |
1mm / 1/16" |
± 0.05mm |
607-63-4 |
|
| 焊縫高度 |
0-25mm / 0-1" |
1mm / 1/16" |
± 0.5mm |
|
|
|
| 安装误差 |
0-25mm / 0-1" |
1mm / 1/16" |
± 0.05mm |
|
|
|
| 咬边深度 |
0-2mm / 0-1/8" |
1mm / 1/16" |
± 0.05mm |
|
|
|
| 角焊缝厚度 |
0-20mm / 0-3/4" |
1mm / 1/16" |
± 0.05mm |
|
|
|
| 坡口角度 |
0-60° |
5° |
± 1° |
|
|
|
| 长度 |
0-60mm / 0-2" |
1mm / 1/16" |
± 0.5mm |
|
|
|
| 45° 角 |
|
|
± 1° |
|
|
|
