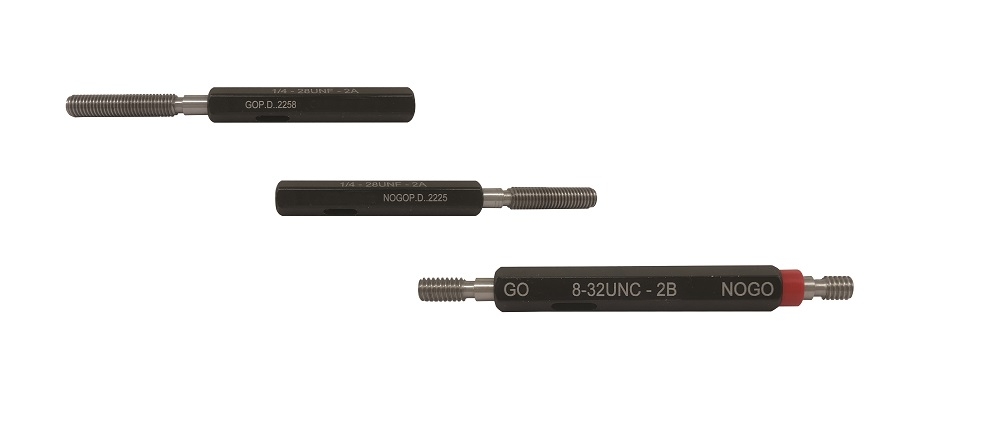

ANSI 標準英制螺紋塞規 Series-695-ANSIThreadPlugGauges

規格表標題

INCH METRIC

規格	產品編號
0 - 80UNF	695-01-1
1 - 64UNC	695-02-1
1 - 72UNF	695-03-1
2 - 56UNC	695-04-1
2 - 64UNF	695-05-1
3 - 48UNC	695-06-1
3 - 56UNF	695-07-1
4 - 40UNC	695-08-1
4 - 48UNF	695-09-1
5 - 40UNC	695-10-1
5 - 44UNF	695-11-1
6 - 32UNC	695-12-1
6 - 40UNF	695-13-1
8 - 32UNC	695-14-1
8 - 36UNF	695-15-1
10 - 24UNC	695-16-1
10 - 32UNF	695-17-1
12 - 24UNC	695-18-1
12 - 28UNF	695-19-1
1/4 - 20UNC	695-20-1
1/4 - 28UNF	695-21-1
1/4 - 32UNEF	695-22-1
5/16 - 18UNC	695-23-1
5/16 - 24UNF	695-24-1
5/16 - 32UNEF	695-25-1
3/8 - 16UNC	695-26-1
3/8 - 24UNF	695-27-1
3/8 - 32UNEF	695-28-1
7/16 - 14UNC	695-29-1
7/16 - 20UNF	695-30-1
7/16 - 28UNEF	695-31-1
1/2 - 13UNC	695-32-1
1/2 - 20UNF	695-33-1
1/2 - 28UNEF	695-34-1
9/16 - 12UNC	695-35-1
9/16 - 18UNF	695-36-1
9/16 - 24UNEF	695-37-1
5/8 - 11UNC	695-38-1
5/8 - 18UNF	695-389-1
5/8 - 24UNEF	695-40-1
3/4 - 10UNC	695-41-1
3/4 - 16UNF	695-42-1
3/4 - 20UNEF	695-43-1
7/8 - 9UNC	695-44-1
7/8 - 14UNF	695-45-1
7/8 - 20UNEF	695-46-1
1" - 8UNC	695-47-1
1" - 12UNF	695-48-1

規格	產品編號
0 - 80UNF	695-01-0
1 - 64UNC	695-02-0
1 - 72UNF	695-03-0
2 - 56UNC	695-04-0
2 - 64UNF	695-05-0
3 - 48UNC	695-06-0
3 - 56UNF	695-07-0
4 - 40UNC	695-08-0
4 - 48UNF	695-09-0
5 - 40UNC	695-10-0
5 - 44UNF	695-11-0
6 - 32UNC	695-12-0
6 - 40UNF	695-13-0
8 - 32UNC	695-14-0
8 - 36UNF	695-15-0
10 - 24UNC	695-16-0
10 - 32UNF	695-17-0
12 - 24UNC	695-18-0
12 - 28UNF	695-19-0
1/4 - 20UNC	695-20-0
1/4 - 28UNF	695-21-0
1/4 - 32UNEF	695-22-0
5/16 - 18UNC	695-23-0
5/16 - 24UNF	695-24-0
5/16 - 32UNEF	695-25-0
3/8 - 16UNC	695-26-0
3/8 - 24UNF	695-27-0
3/8 - 32UNEF	695-28-0
7/16 - 14UNC	695-29-0
7/16 - 20UNF	695-30-0
7/16 - 28UNEF	695-31-0
1/2 - 13UNC	695-32-0
1/2 - 20UNF	695-33-0
1/2 - 28UNEF	695-34-0
9/16 - 12UNC	695-35-0
9/16 - 18UNF	695-36-0
9/16 - 24UNEF	695-37-0
5/8 - 11UNC	695-38-0
5/8 - 18UNF	695-389-0
5/8 - 24UNEF	695-40-0
3/4 - 10UNC	695-41-0
3/4 - 16UNF	695-42-0
3/4 - 20UNEF	695-43-0
7/8 - 9UNC	695-44-0
7/8 - 14UNF	695-45-0
7/8 - 20UNEF	695-46-0
1" - 8UNC	695-47-0
1" - 12UNF	695-48-0

規格	產品編號
0 - 80UNF	695-01-2
1 - 64UNC	695-02-2
1 - 72UNF	695-03-2
2 - 56UNC	695-04-2
2 - 64UNF	695-05-2
3 - 48UNC	695-06-2
3 - 56UNF	695-07-2
4 - 40UNC	695-08-2
4 - 48UNF	695-09-2
5 - 40UNC	695-10-2
5 - 44UNF	695-11-2
6 - 32UNC	695-12-2
6 - 40UNF	695-13-2
8 - 32UNC	695-14-2
8 - 36UNF	695-15-2
10 - 24UNC	695-16-2
10 - 32UNF	695-17-2
12 - 24UNC	695-18-2
12 - 28UNF	695-19-2
1/4 - 20UNC	695-20-2
1/4 - 28UNF	695-21-2
1/4 - 32UNEF	695-22-2
5/16 - 18UNC	695-23-2
5/16 - 24UNF	695-24-2
5/16 - 32UNEF	695-25-2
3/8 - 16UNC	695-26-2
3/8 - 24UNF	695-27-2
3/8 - 32UNEF	695-28-2
7/16 - 14UNC	695-29-2
7/16 - 20UNF	695-30-2
7/16 - 28UNEF	695-31-2
1/2 - 13UNC	695-32-2
1/2 - 20UNF	695-33-2
1/2 - 28UNEF	695-34-2
9/16 - 12UNC	695-35-2
9/16 - 18UNF	695-36-2
9/16 - 24UNEF	695-37-2
5/8 - 11UNC	695-38-2
5/8 - 18UNF	695-389-2
5/8 - 24UNEF	695-40-2
3/4 - 10UNC	695-41-2
3/4 - 16UNF	695-42-2
3/4 - 20UNEF	695-43-2
7/8 - 9UNC	695-44-2
7/8 - 14UNF	695-45-2
7/8 - 20UNEF	695-46-2
1" - 8UNC	695-47-2
1" - 12UNF	695-48-2
