Series 663

技術特性

  • 用硬化鋼精製而成。
  • 硬度為 HRC 48。
  • 高度公差:±0.01mm
  • 配對公差 IT5

規格表標題

單塊高度單塊寬度 x 高度量塊
數量 (對)
產品編號
14, 16, 18, 20, 22, 24,
26, 28, 30, 32, 35, 40mm
120mm 10mm 12 663-01-0
14, 16, 18, 20, 22, 24,
26, 28, 30, 32, 35, 40, 45, 50mm

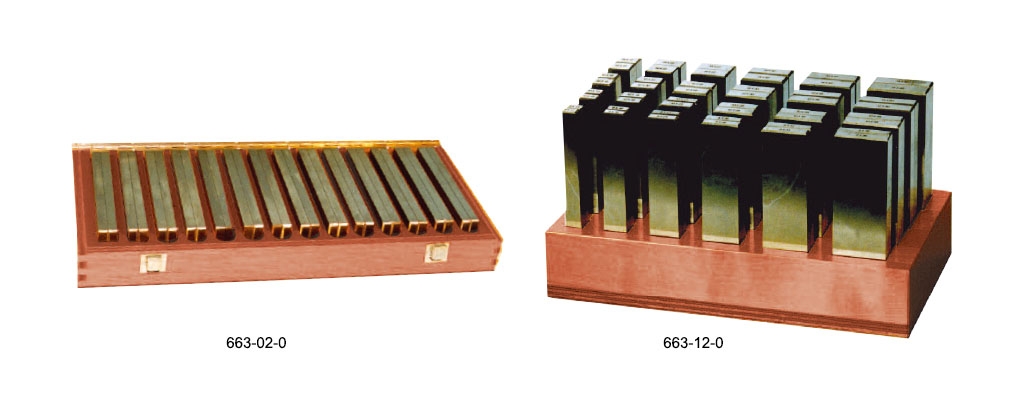

150mm 10mm 14 663-02-0
2x5, 3x6, 4x7, 5x8, 6x9mm,
2x10, 3x11, 4x12, 5x13, 6x14mm,
2x15, 3x16, 4x17, 5x18, 6x19mm,
2x20, 3x21, 4x22, 5x23, 6x24mm
100mm 20 663-11-0
8x11, 10x13, 12x15, 14x17mm,
8x16, 10x18, 12x20, 14x22mm,
8x21, 10x23, 12x25, 14x27mm
8x26, 10x28, 12x30, 14x32mm,
8x31, 10x33, 12x35, 14x37mm,
8x36, 10x38, 12x40, 14x42mm
125mm 24 663-12-0
8x11, 10x13, 12x15, 14x17mm,
8x16, 10x18, 12x20, 14x22mm,
8x21, 10x23, 12x25, 14x27mm
8x26, 10x28, 12x30, 14x32mm,
8x31, 10x33, 12x35, 14x37mm,
8x36, 10x38, 12x40, 14x42mm
150mm 24 663-13-0
